Optical Transmission FWDM Multiplexer 1310nm 1550nm Filter Based Wavelength Division Multiplexer
Price:
Negotiable
MOQ:
1pieces
Delivery Time:
5-8 work days
Brand:
Gracyfiber
Product Description
FWDM Multiplexer (Filter-Based Wavelength Division Multiplexer) — 1260–1620 Nm, 1310/1550 Nm, 1400–1572 Nm, 1530–1565 Nm — For Optical Transmission, CATV, And Fiber Networks
Product Description
This FWDM Multiplexer is a filter-based wavelength division multiplexer designed for optical transmission systems. Operating within a wavelength range of 1260–1620 nm, it supports various combinations of Pass Bands and Reflect Bands—including schemes such as 1310/1550 nm, 1400–1572 nm, 1530–1565 nm, and 1600–1670 nm—thereby meeting the multiplexing, demultiplexing, and link isolation requirements of diverse networks.
Key Features

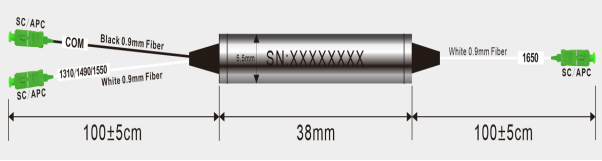

| Parameter | Unit | Value | ||||||
|---|---|---|---|---|---|---|---|---|
| Operating Wavelength | nm | 1260~1620 | ||||||
| Pass Band Wavelength | nm | 1310 (±50) | 1550 (±80) | 1400~1572 | 1530-1565 | 1260~1620 | 1600~1670 | |
| Reflect Band Wavelength | - | 1550 ( ±80) | 1310 ( ±50) | 1575~1680 | 1260-1500 &1575-1660 |
1640~1670 | 1260~1590 | |
| Insertion Loss | Max.Pass | dB | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 |
| Max.Reflect | dB | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | |
| Isolation | Transmission | dB | ≥30 | ≥30 | ≥30 | ≥30 | ≥40 | ≥30 |
| Reflection | dB | ≥15 | ≥15 | ≥15 | ≥15 | ≥15 | ≥15 | |
| Ripple | Max | dB | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 |
| PDL | Max | dB | 0.10 | |||||
| Return Loss | Min | dB | 40 | |||||
| Directivity | Min | dB | 50 | |||||
| Power Handing | Max | mW | 300 | |||||
| Fiber Type | - | G67A1/ A2/ B3 or SMF-28 | ||||||
| Fiber Coating | um | 250 µm / 900 µm loose tube | ||||||
| Fiber Length | mm | 1000 | ||||||
| Connector | - | LC/UPC or Customized | ||||||
| Dimensions (HxWxD) | mm | 90x20x10, 120x80x18, 155x129x29, 482x250x44 | ||||||
| Operating Temperature | °C | -5~65 | ||||||
| Storage Temperature | °C | -40~85 | ||||||
Applications
- Wavelength Division Multiplexing (WDM) and Demultiplexing Systems
- Optical Transmission Networks
- CATV Optical Networks
- PON and Access Network Systems
- Optical Line Monitoring
- Optical Communication Equipment
- Optical Testing Platforms
- OEM Optical Module Integration
