16CH 200G O-Band PM DWDM Module for Broadband, PON and CATV Networks
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
5-8 work days
Brand:
Gracyfiber
Product Description
16CH 200G O-Band PM DWDM Module for Broadband, PON and CATV Networks
1 Features
- Low Insertion loss and High ER
- High channel Isolation
- Good channel-to-channel uniformity
- High Reliability and Stability
- Telcordia Compliant
- RoHS Compliant
2 Applications
- Broadband networks
- PON Networks
- CATV system
- DWDM system
3 Specifications
| Parameters | Specification | ||
|---|---|---|---|
| Operating Wavelength (nm) | 1260~1380 | ||
| Channel spacing | 200G | ||
| Number of Channel | 16 | ||
| Pass band (nm) | λC±0.2 | ||
| Ripple (dB) | ＜0.5 | ||

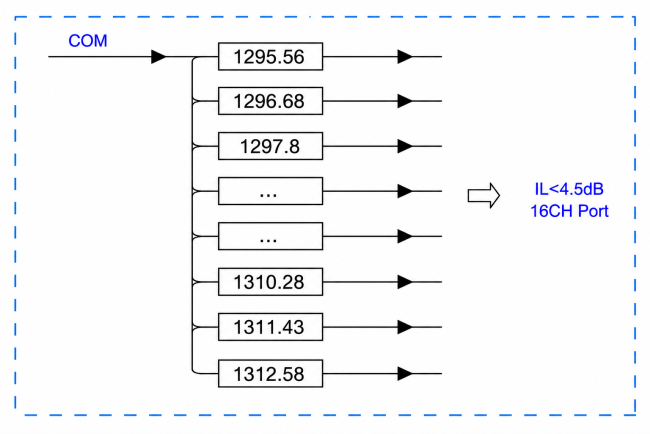

| Port Insertion Loss |
Channel | Mux | Demux |
| CH1- 1295.56nm | ≤4.5 | ≤1.0 | |
| CH2- 1296.68nm | ≤4.3 | ≤1.3 | |
| CH3- 1297.80nm | ≤4.1 | ≤1.6 | |
| CH4- 1298.93nm | ≤3.9 | ≤1.9 | |
| CH5- 1300.05nm | ≤3.7 | ≤2.2 | |
| CH6- 1301.18nm | ≤3.5 | ≤2.5 | |
| CH7- 1302.31nm | ≤3.3 | ≤2.7 | |
| CH8- 1303.45nm | ≤3.1 | ≤2.9 | |
| CH9- 1304.58nm | ≤2.9 | ≤3.1 | |
| CH10- 1305.72nm | ≤2.7 | ≤3.3 | |
| CH11- 1306.85nm | ≤2.5 | ≤3.5 | |
| CH12- 1308.00nm | ≤2.2 | ≤3.7 | |
| CH13- 1309.14nm | ≤1.9 | ≤3.9 | |
| CH14- 1310.28nm | ≤1.6 | ≤4.1 | |
| CH15- 1311.43nm | ≤1.3 | ≤4.3 | |
| CH16- 1312.58nm | ≤1.0 | ≤4.5 | |
| Link loss (dB) | < 5.5 | ||
| Isolation (dB) | Adjacent | > 25 | |
| Non-adjacent | > 35 | ||
| ER (dB) | > 16 | ||
| RL (dB) | >45 | ||
| Directivity (dB) | >50 | ||
| Power (mw) | <300 | ||
| Fiber Type | Corning PM -1310-U25D | ||
| Connector | LC/UPC | ||
| Operating Temperature (℃) | 0~+65 | ||

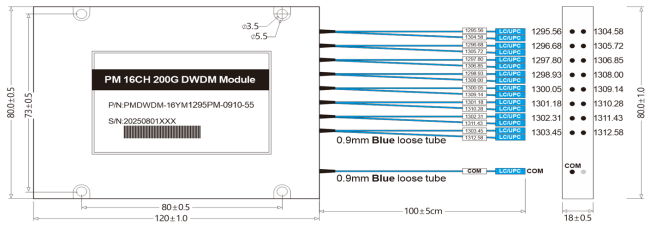

| Housing(mm) | 120*80*18 | ||
