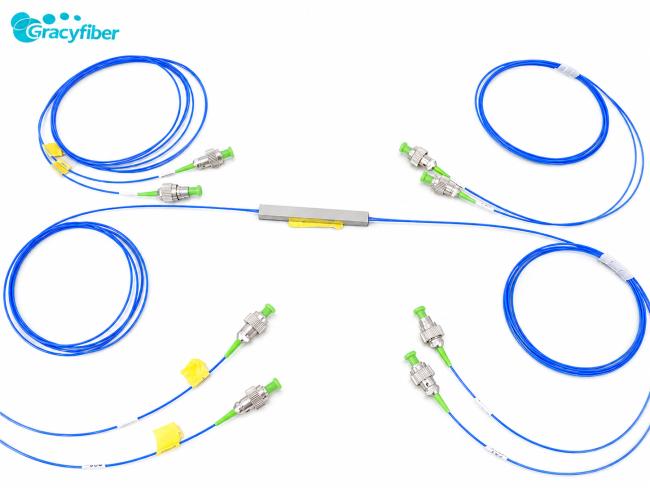

Coherent Communication Fiber Gyroscope PM PLC Splitter 2x(1x4) Channel Polarization Maintaining Splitter High Stability ER>18dB MPO Output Optical Device
Price:
Negotiable
MOQ:
1pieces
Delivery Time:
5-8 work days
Brand:
Gracyfiber
Product Description
Coherent Communication Fiber Gyroscope PM PLC Splitter 2x(1x4) Channel Polarization Maintaining Splitter High Stability ER>18dB MPO Output Optical Device
1. Features
- Low insertion loss combined with high reliability and stability.
- High extinction ratio for superior polarization maintenance.
- Excellent channel-to-channel uniformity.
- Wide operating wavelength range.
- Compact package design suitable for high-density integration.
2. Applications
- Coherent communication networks.
- Fiber optic gyroscope (FOG) systems.
- Optical fiber sensing equipment.
3. Specifications
- Operating Wavelength: 1260~1650 nm (Test Wavelength: 1550 nm).
- Optical Performance: Insertion Loss ≤ 8.2 dB, Uniformity ≤ 0.8 dB.
- Extinction & Return Loss: Extinction Ratio ≥ 18 dB, Return Loss ≥ 50 dB.

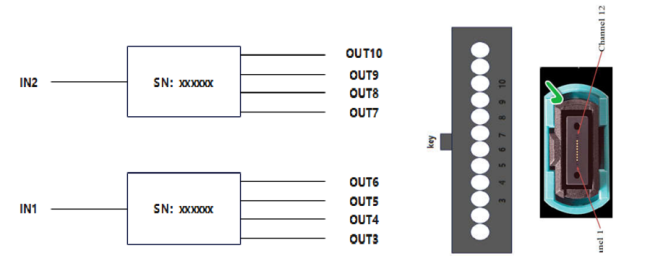

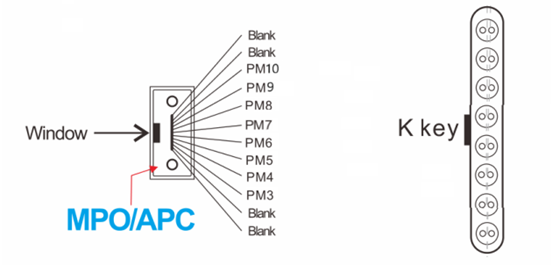

- Connectors: Input: FC/APC (Slow axis work); Output: MPO/APC Male (Fast axis work).
- Fiber Type: PM 15-U25D.
- Package Dimensions: 100 x 80 x 10 mm (ABS Box).
