2Group 1x4 PM PLC Splitter 1260-1650nm High Extinction Ratio Low Insertion Loss ABS Box 100x80x10mm FC/APC to MPO/APC Polarization Maintaining Module Custom
1. Specifications
|
Parameters |
Unit |
Value |
|---|---|---|
|
Operating Wavelength |
nm |
1260~1650 |
|
Test Wavelength |
nm |
1550 |
|
Insertion Loss |
dB |
≤8.2 |
|
Uniformity |
dB |
≤0.8 |
|
Extinction Ratio |
dB |
≥18 |
|
Return Loss |
dB |
≥50 |
|
Directionality |
dB |
≥50 |
|
Pigtail |
/ |
Input:0.9m blue hytrel tube Output:3.0mm yellow PVC Tube |
|
Input & Output Length |
m |
0.5±0.03 |
|
Connector |
/ |
Input=FC/APC(slow axis work), Output=MPO/APC(male)-(Fast axis work) |
|
Fiber Mark |
/ |
Numbering tube |
|
Package Dimension |
mm |
100*80*10 |
|
Power |
mW |
300 |
|
Operating Temperature |
℃ |
-5~+65 |
|
Storage Temperature |
℃ |
-40～+85 |
|
Fiber Type |
/ |
PM 15-U25D |

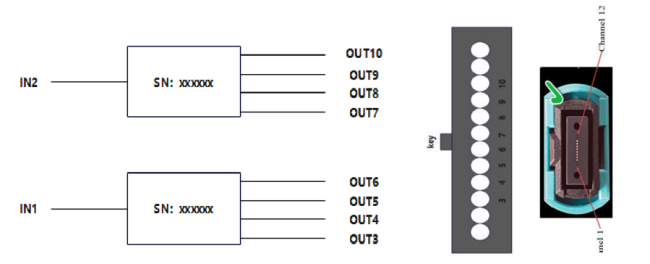

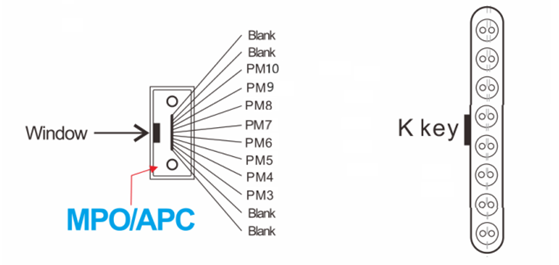

2．Package Dimension
3. Ordering information
|
PMPLC |
- |
XXX |
XXX |
XX |
XX |
XX |
- |
X |
X |
|---|---|---|---|---|---|---|---|---|---|
|
|
|
Port NO |
Wavelength |
Modules type |
Fiber Type |
Fiber Length |
|
Input connector |
Output Connector |
|
PM PLC |
|
14=1X4 |
131=1310nm |
PS=100 X80 X10 |
02=250um fiber |
05=0.5m |
|
0=None |
0=None |
|
|
|
148=1480nm |
XX=Customized |
09=0.9mm Tube |
XX=Customized |
|
1=FC/UPC |
1=FC/UPC |
|
|
|
|
155=1550nm |
|
20=2.0mm Tube |
|
|
2=FC/APC |
2=FC/APC |
|
|
|
|
|
980=980nm |
|
30=3.0mm Tube |
|
|
3=SC/UPC |
3=SC/UPC |
|
|
|
|
106=1064nm |
|
XX=Customized |
|
|
4=SC/APC |
4=SC/APC |
|
|
|
|
780=780nm |
|
|
|
|
5=LC/UPC |
5=LC/UPC |
|
|
|
|
|
|
|
|
|
6=LC/APC |
6=LC/APC |
|
|
|
|
|
|
|
|
|
X=Customized |
M=MPO |
|
Part Number |
Product Description |
|---|---|
|
PMPLC-141550PS0905-2M(2Group) |
2Group 1*4 PM PLC Splitting, PM15-U25D fiber,input with 0.9mm Hytrel Blue Tube FC/APC, Output with 3.0mm PVC Tube ,MPO/APC connector. ABS BOX: 100*80*10mm. |
