4 Channel 200G O-Band PM DWDM Multiplexer 1260-1380nm High ER Polarization Maintaining Module 100x80x10mm Telcordia Custom

1. Features

• Features low insertion loss paired with a high extinction ratio for superior polarization maintenance.




• Engineered for high channel isolation and excellent channel-to-channel uniformity.




• Delivers high reliability and stability in demanding optical environments.




• Fully compliant with Telcordia and RoHS industry standards.




2. Applications

• Dense Wavelength Division Multiplexing (DWDM) systems.




• High-capacity broadband network architectures.




• Passive Optical Networks (PON).




• Cable Television (CATV) systems.




3. Specifications

• Operating Wavelength: 1260~1380 nm (O-Band).




• Channel Configuration: 4-Channel Multiplexer (MUX).




• Channel Spacing: 200G.

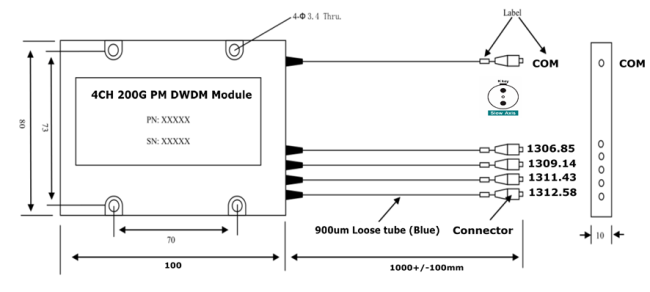

• Package Dimensions: Compact footprint measuring 100 x 80 x 10 mm.




• Connector Options: Highly customizable with FC/UPC, FC/APC, SC/UPC, SC/APC, LC/UPC, or LC/APC interfaces.

FAQ

1: What tests are performed before product shipment?

A: We conduct factory tests and parameter confirmations focusing on key optical indicators, including insertion loss, extinction ratio, channel isolation, channel consistency, return loss, directivity, center wavelength, and visual inspection. This product series emphasizes high reliability and stability and complies with Telcordia and RoHS industry standards.

2: What are the warranty policy and after-sales support?

A: This product is ISO9001 and RoHS certified, suitable for the quality control requirements of B2B projects. If non-human-caused quality problems occur within the warranty period, we can provide parameter retesting, technical analysis, repair or replacement support; the specific warranty period, RMA process, and scope of responsibility should be confirmed in the quotation or purchase contract.
