PM DWDM Module, O-Band DWDM, 8CH Mux. 200G Channel Spacing, High Extinction Ratio, Low Insertion loss, High channel Isolation
PM DWDM Module, O-Band DWDM, 8CH Mux. 200G Channel Spacing, High Extinction Ratio, Low Insertion loss, High channel Isolation
1. Specifications
|
Parameters |
8CH Mux |
|
|
Operating Wavelength (nm) |
1260~1380 |
|
|
Channel spacing |
200G(Oband) |
|
|
953115409产品波长 |
1295.56/1297.8/1300.05/1302.31/1304.58/1306.85/1309.14/1311.43 |
|
|
953115410产品波长 |
1296.68/1298.93/1301.18/1303.45/1305.72/1308.00/1310.28/1312.58 |
|
|
Pass band (nm) |
λC±0.2 |
|
|
Ripple (dB) |
＜0.5 |
|
|
Insertion Loss (dB) |
< 2.5 |
|
|
Extinction Ratio (dB) |
> 18 |
|
|
Isolation (dB) |
Adjacent |
> 28 |
|
Non-adjacent |
> 40 |
|
|
RL (dB) |
>45 |
|
|
Directivity (dB) |
>50 |
|
|
Power (mw) |
<300 |
|
|
Fiber Type |
PM 13-U25D Fiber |
|
|
Fiber Length(m) |
1.0+/-0.1(0.9mm Hytyrel Blue Tube) |
|
|
Connector |
FC/APC |
|
|
Operating Temperature (℃) |
-5~+65 |
|
|
Storage Temperature (℃) |
-40~+85 |
|
|
Housing(mm) |
100*80*10 |
|

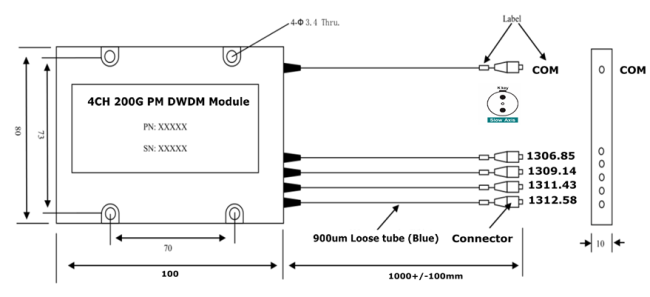

2 Mechanical Dimensions
3 Ordering information
|
PM DWDM |
- |
XX |
XXX |
X X |
XXXX |
XX |
- |
X |
X |
|
|
|
Channel No. |
MUX/DEMUX Type |
ITU |
Initial CW |
Package Type |
|
Input Connector |
Output Connector |
|
PM DWDM |
|
04=04CH |
M =Mux |
O2=200G |
306=1306.85 |
PS=100x80x10 |
|
0=No |
0=No |
|
|
|
|
|
|
311=1311.43 |
XX= Customized |
|
1=FC/UPC |
1=FC/UPC |
|
|
|
|
|
|
|
|
|
2=FC/APC |
2=FC/APC |
|
|
|
|
|
|
|
|
|
3=SC/UPC |
3=SC/UPC |
|
|
|
|
|
|
|
|
|
4=SC/APC |
4=SC/APC |
|
|
|
|
|
|
|
|
|
5=LC/UPC |
5=LC/UPC |
|
|
|
|
|
|
|
|
|
6=LC/APC |
6=LC/APC |
|
Part Number |
Product Description |
|
PMDWDM-04MO306PS-22(S) |
200G Oband PM DWDM Mux&Demux Module, 1305.85~1312.58 ,4 Port , ABS Box(100*80*18mm), 0.9mm Blue Tube FC/APC connectors. Slow Axis Works. |
