High Stability PM DWDM Module 2CH 1310nm RoHS Compliant Wavelength Division Multiplexer for CATV PON Networks

1. Features

• Features low insertion loss paired with a high extinction ratio for superior polarization control.




• Engineered to deliver high channel isolation and good channel-to-channel uniformity.




• Ensures high reliability and stability in demanding optical networking environments.




• Fully compliant with strict Telcordia and RoHS industry standards.

2. Applications

• Dense Wavelength Division Multiplexing (DWDM) systems.




• High-capacity broadband network infrastructures.




• Passive Optical Networks (PON).




• Cable Television (CATV) systems.




3. Specifications

• Operating Wavelengths: Precision-tuned for CH1 (1308.94 to 1309.34 nm) and CH2 (1310.08 to 1310.48 nm).




• Channel Spacing: 200G.




• Channel Configuration: 2-Channel Multiplexer (MUX) module.

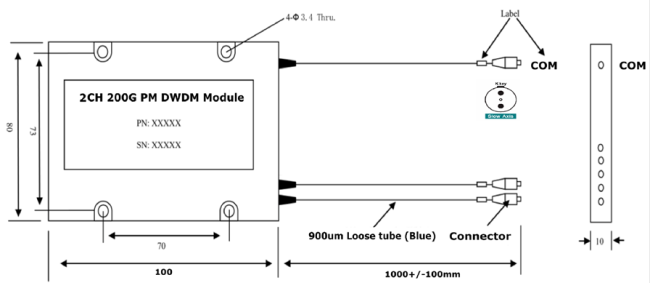

• Package Dimensions: Compact footprint measuring 100 x 80 x 10 mm.




• Connector Options: Highly customizable with FC/UPC, FC/APC, SC/UPC, SC/APC, LC/UPC, or LC/APC interfaces.

FAQ

1: Can I purchase samples for testing first? What is the MOQ?

A: Yes. The product page indicates an MOQ of 1 piece, suitable for engineers to conduct sample verification, link testing, polarization axis confirmation, and equipment compatibility assessment. After the sample testing is successful, small-batch trial production or mass production can be arranged.

2: How are the lead time and discounts confirmed for bulk orders?

A: Bulk order lead time depends on wavelength combination, connectors, package structure, testing items, and order quantity. The page shows a monthly supply capacity of 100,000 pieces; for bulk purchases, annual projects, or multiple delivery needs, we can provide tiered pricing, bulk discounts, and project lead time assessments based on quantity, specification complexity, and delivery schedule.
