1*16 Equipartition PM Optical splitter ，BOX type,Wavelength is 420~456nm PM Panda fiber With 0.9mm Hytrel White Tube
1*16 Equipartition PM Optical splitter ,BOX type,Wavelength is 420~456nm PM Panda fiber With 0.9mm Hytrel White Tube,fiber Length 1m (with connector), connector FC/APC
1. Features
Ø Low Insertion Loss
Ø Low Extinction Ratio
Ø Available for Slow Only or Fast Axis App
Ø High Stability and Reliability
2. Applications
Ø EDFA
Ø Fiber Optical Instrument
Ø Coherent Communication
Ø Power Monitoring
Ø Fiber Sensor
3. Specifications
|
Parameters |
Unit |
PM 1x16 |
|
|
Operating Wavelength |
nm |
420-456 |
|
|
Typical Excess Loss |
nm |
≤19 |
|
|
Polarization Extinction Ratio |
dB |
≥12 |
|
|
Loss Uniformity |
dB |
≤1.6 |
|
|
Return Loss |
dB |
≥55 |
|
|
Power Handling |
W |
≤0.3 |
|
|
Directivity |
dB |
≥50 |
|
|
Operating Temperature |
℃ |
-5~+65 |
|
|
Storage Temperature |
℃ |
-40～+80 |
|
|
Port Type |
/ |
1x18 |
|
|
Fiber Type |
/ |
Panda fiber |
|
|
Fiber Length |
m |
1.0±0.1m, others on request |
|
|
Connector |
/ |
FC/APC, others on request |
|
|
Package Dimension |
2mm/3mm Loose Tube |
mm |
120×80×18 |

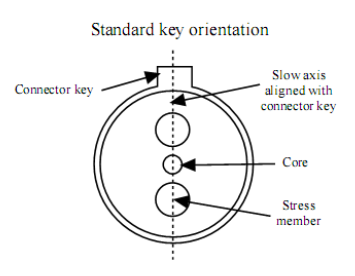

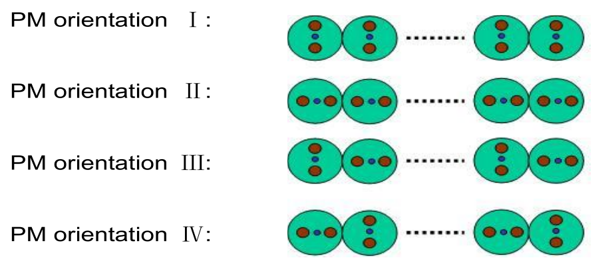

The default connector key is aligned to slow axis.
5. Ordering information
|
Couper |
- |
XXX |
XXX |
XXX |
XX |
XX |
- |
X |
X |
|
|
|
Port NO |
Wavelength |
Modules type |
Fiber Type |
Fiber Length |
|
Com connector |
Port Connector |
|
PM OS= Coupler
|
|
16=1X16 |
435=420~456nm |
PM=120 X120 X18 |
02=250um fiber |
10=1.0m |
|
0=None |
0=None |
|
|
|
|
XX=Customized |
09=0.9mm Tube |
XX=Customized |
|
1=FC/UPC |
1=FC/UPC |
|
|
|
|
|
|
20=2.0mm Tube |
|
|
2=FC/APC |
2=FC/APC |
|
|
|
|
|
|
|
30=3.0mm Tube |
|
|
3=SC/UPC |
3=SC/UPC |
|
|
|
|
|
|
XX=Customized |
|
|
4=SC/APC |
4=SC/APC |
|
|
|
|
|
|
|
|
|
5=LC/UPC |
5=LC/UPC |
|
|
|
|
|
|
|
|
|
6=LC/APC |
6=LC/APC |
|
|
|
|
|
|
|
|
|
X=Customized |
X=Customized |
|
Part Number |
Product Description |
|
PMOS-16435PM0910-22(S5) |
1*16 Equipartition PM Optical splitter ,BOX type, Wavelength is 420~456nm PM Panda fiber With 0.9mm Hytrel White Tube, fiber Length 1m (with connector), connector FC/APC, connector key is aligned to slow axis. Power Handling Max is 300mw |
