Fiber Amplifier Optic Lab PM Patchcord 1550nm Polarization Maintaining Fiber Optic Jumper Slow Axis High Stability Testing Instrument

Polarization Maintaining (PM) Fiber Patchcord (1550nm)

1. Features

• Delivers ultra-low insertion loss (≤0.3 dB) combined with exceptionally high return loss for optimal signal integrity.




• Guarantees a high extinction ratio (≥23 dB) to ensure superior and consistent polarization maintenance.




• Engineered for high stability and reliability in demanding optical network and laboratory environments.




• Features precise slow-axis key orientation with strict axis alignment tolerances of ±3 degrees.




2. Applications

• High-power fiber laser systems and component integration.




• Optical fiber amplifiers and specialized routing modules.




• Precision testing instruments and measurement equipment.




• Advanced optics laboratory research and development.

3. Specifications

• Operating Wavelength: 1550 nm.




• Fiber Type: Premium Corning Panda PM1550 fiber.




• Optical Performance: Insertion loss ≤ 0.3 dB; Extinction Ratio ≥ 23 dB at 23℃.




• Return Loss: ≥ 55 dB for APC type connectors (≥ 50 dB for UPC type).

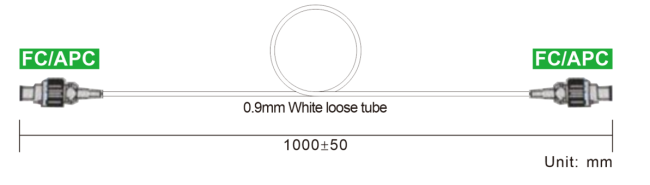

• Physical Dimensions: Standard 100±5 cm fiber length housed in a 0.9mm white loose tube.




• Connectors: FC/APC to FC/APC.
