PM Fiber Array Fiber Optic Modules Offering Extinction Ratio ≥15-25 DB Channel Dependent Designed for Optical Signal Transmission and Networking
Product Description:

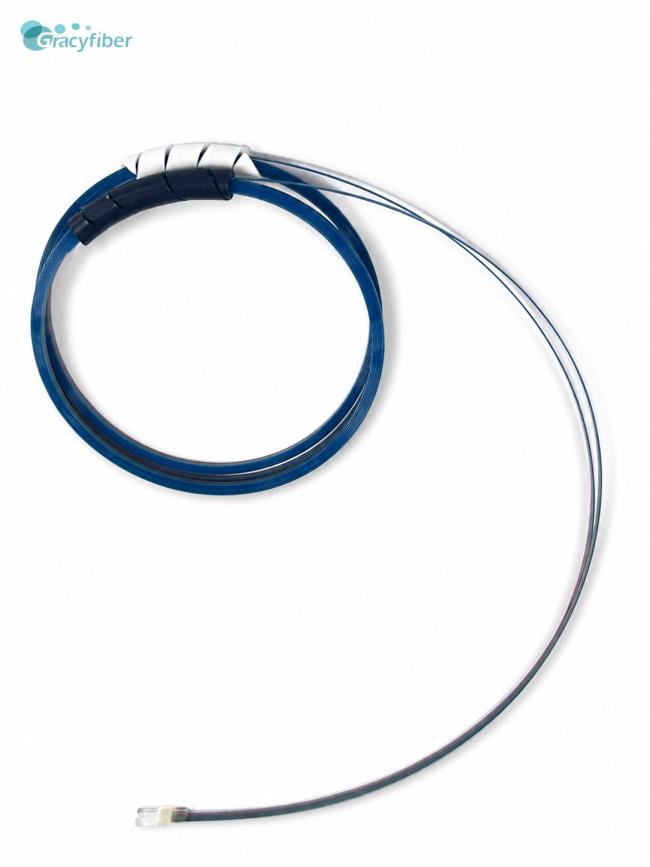

GRACYFIBER's 2D Fiber Array (FA) represents a highly precise optical interface component tailored to overcome the input/output limitations commonly encountered in AI computing infrastructure as well as high-performance computing (HPC) systems. Unlike conventional fiber arrays that use a linear configuration, this product adopts an innovative two-dimensional matrix design, enabling a remarkable increase in fiber density within a highly compact form factor.
Features:
| Parameter | Unit | 16-1024 |
|---|---|---|
| Wavelength | nm | 1260–1650 |
| Materials | - | Glass / Ceramic |
| Geometry | - | 2D Matrix |
| Core Pitch | - | 127 μm |
| Core Pitch Tolerance | μm | ±1 |
| Insertion Loss | dB | ≤ 0.8 (typical 0.5) |
| Return Loss | dB | UPC ≥ 40, APC ≥ 50 |
| Fiber Type | - | OM1 / OM2 / OM3 / OM4 / OM5 / G657A1 / A2 / B3 or Customized |
| Fiber Coating | μm | 250 μm / 350 μm |
| Fiber Type Length | cm | 100 ± 10 or Customized |
| Connector | - | .FC / LC / SC / E2000 / MT / MPO / MMC |
| Operation Temperature | °C | -5 to 65 |
| Storage Temperature | °C | -40 to 85 |
(This product is developed specifically to address your CPO space constraints and the challenges associated with high-concurrency light-emitting interconnects.)
FAQ:
Q1: What is the channel range available for the Ultra-High Density 2D Fiber Array?
A1: The Ultra-High Density 2D Fiber Array is available with 16 to 1024 channels, providing flexible options to suit various application needs.
Q2: What brand manufactures the Ultra-High Density 2D Fiber Array?
A2: The product is manufactured under the brand name Ultra-High Density 2D Fiber Array.
Q3: Where is the Ultra-High Density 2D Fiber Array produced?
A3: The Ultra-High Density 2D Fiber Array is made in China.
Q4: What are typical applications for the Ultra-High Density 2D Fiber Array?
A4: This fiber array is commonly used in optical communication, sensing, and high-density fiber optic interconnection systems.
Q5: Can the Ultra-High Density 2D Fiber Array be customized?
A5: Yes, customization options are available to meet specific channel counts and configuration requirements within the 16 to 1024 channel range.
