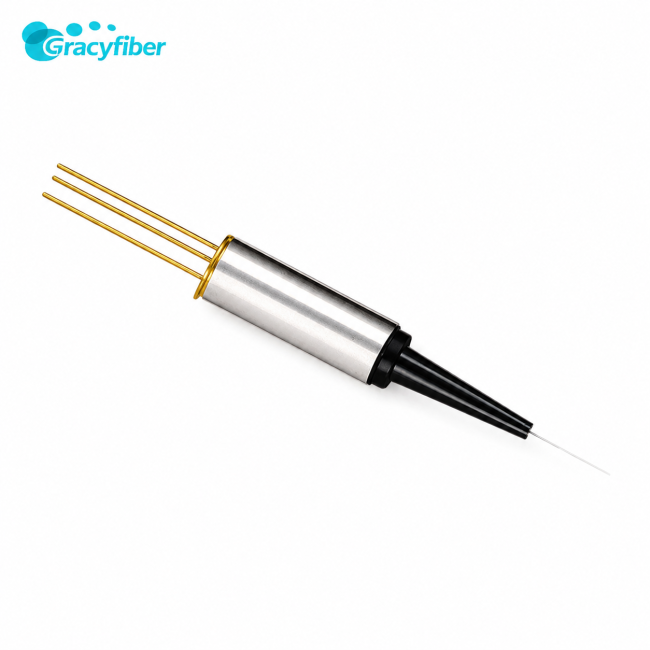

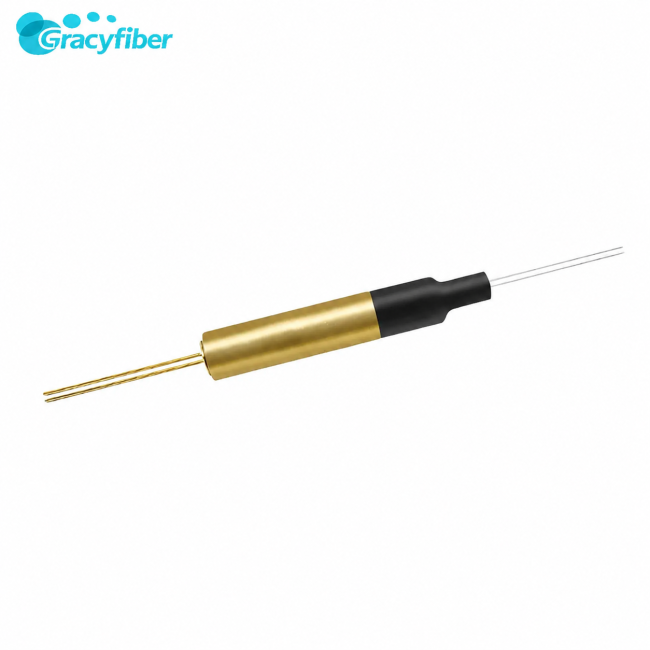

PM Fiber Tap Photo Detector with Corning PM1310 Panda Fiber for ROADM and EDFA Monitoring
Price:
Negotiable
MOQ:
1pieces
Delivery Time:
5-8 work days
Brand:
Gracyfiber
Product Description
PM Fiber Tap Photo Detector with Corning PM1310 Panda Fiber for ROADM and EDFA Monitoring
1. Product Description
PM Tap Photo Detector, Polarization-Maintaining Tap Detector, 1260~1620nm, 1:99, 3:97, 5:95, Online Power Monitoring Module for DWDM, OLP, ROADM and Amplifier Monitoring
2. Key Features
Supports a wide operating wavelength range of 1260~1620nm
Supports multiple tap ratios: 1:99, 3:97, 5:95
Insertion loss as low as 0.35dB without connectors
High responsivity design, up to 40~60mA/W
Low dark current, <0.5nA at 25℃
Extinction ratio ≥18dB
Wavelength-dependent loss ≤0.3dB
Return loss ≥45dB
Uses Corning PM1310 Panda Fiber
Default FC/APC interface, slow axis keying
Operating temperature -5~65℃, storage temperature -40~85℃
3. Applications
DWDM Channel Power Monitoring
Optical Line Protection Monitoring
ROADM Multiplexers
Amplifier Gain Monitoring
Online Link Status Detection
Polarization-Maintaining Optical Communication and Testing System
