2CH SMFA Fiber Array，2CH Single Mode Fiber Array，2CH MFD Conversion Fiber Array | 250μm Pitch, 0° Angle | Nufern UHNA7 to G657A2 Spliced | FC/APC, Low IL <0.3dB | Optical Transceiver FA
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Product Description
2CH SMFA Fiber Array,2CH Single Mode Fiber Array,2CH MFD Conversion Fiber Array | 250μm Pitch, 0° Angle | Nufern UHNA7 to G657A2 Spliced | FC/APC, Low IL <0.3dB | Optical Transceiver FA
1. Product Overview

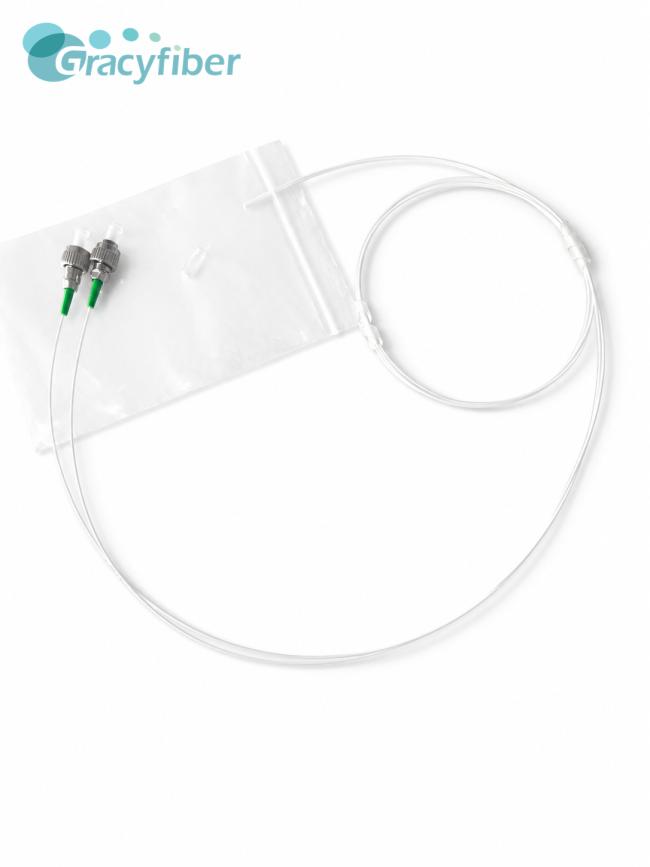

This high-precision 2-channel single-mode fiber array (2CH SMFA) is designed for integration with silicon photonic coupling and optical waveguide devices.
2. Product Features
- Ultra-Low Insertion Loss
- Advanced Mode Field Conversion
- High Precision Channel Spacing
- Highly Stable Quartz Packaging
- High-Quality Termination Connections
| NO. | Parameters | Unit | Spec. | Value |
|---|---|---|---|---|
| 1 | Channel | / | 2 | OK |
| 2 | Material | / | Quartz Glass | OK |
| 3 | Channel Spacing | μm | 250 | OK |
| 4 | Polishing Angle | Degree | A0° | OK |
| 5 | Package(L)X(W)X(H) | mm | 10*2.5*2.5 | OK |
| 6 | Insertion Loss | dB | ≤0.3 | 0.15 |
| 7 | Fiber Type | / | Nufern UHNA7+G657A2 | OK |
| 8 | Length | m | 1±0.1 | OK |
| 9 | Connector | / | FC/APC | OK |
| 10 | Operating Temperature (℃) | 0～65 | OK | |
| 11 | Storage Temperature (℃) | -40～85 | OK | |
3. Applications
- Silicon Photonics Chip Coupling
- PLC Device Integration
- High-Speed Optical Transceiver Packaging
- Optical Fiber Sensing & Test Systems
