Product Description
High RL >55dB Single Channel Fiber Array | 8 Degree APC Polish, Corning SMF-28e | Compact 2.5x2.5x7.9mm Quartz Block | Telecom Grade
Product Description

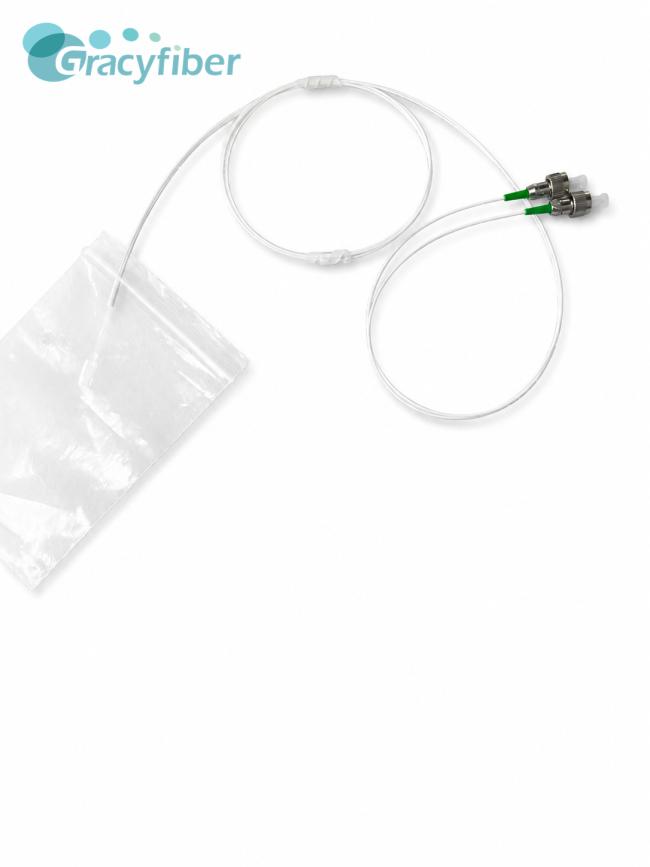

This 1CH SMFA is a single-channel, single-mode fiber array assembly designed for high-precision optical coupling and device packaging applications.
Key Features
| Parameters | Unit | Spec. | Value |
|---|---|---|---|
| Channel | / | 1 | OK |
| Material | / | Quartz Glass | OK |
| Channel Spacing | μm | 127 | OK |
| Polishing Angle | Degree | A8° | OK |
| Package(L)X(W)X(H) | mm | 2.5*2.5*7.9 | OK |
| Insertion Loss | dB | ≤0.3 | |
| Fiber Type | / | SMF-28e | OK |
| Fiber Tube | mm | 0.9 | OK |
| Tube Color | / | White | OK |
| Length | m | 1±0.1 | OK |
| Connector | / | FC/APC | OK |
| Operating Temperature (℃) | 0～65 | OK | |
| Storage Temperature (℃) | -40～85 | OK | |
- Single-channel, single-mode fiber array structure
- Quartz Glass material
- Corning SMF-28e fiber
- A8° polished angle design
- Channel spacing 127μm
- Insertion loss ≤0.3dB
- Return loss >55dB
Applications
- Optical device packaging
- Optical chip and fiber coupling
- Photonic Packaging
- Fiber Interconnect
- Laboratory precision optical path connection
- Optical communication test platform
- High-stability optical component integration
