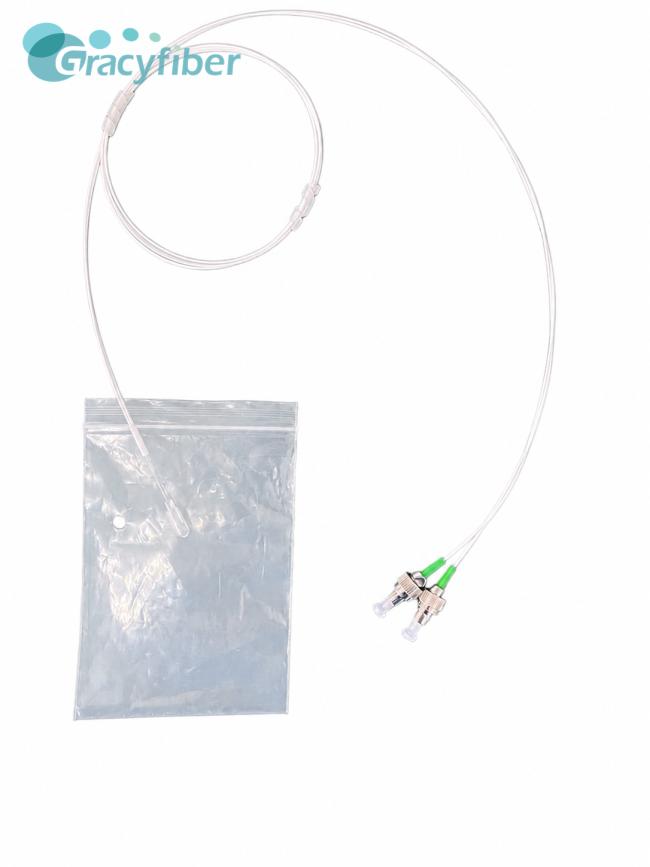

Custom Single Mode Fiber Pigtail | 0° AR Coated Capillary to FC-APC | SMF-28e 0.9mm White Tube with Number Marker | Gracyfiber
Custom Single Mode Fiber Pigtail | 0° AR Coated Capillary to FC-APC | SMF-28e 0.9mm White Tube with Number Marker | Gracyfiber
1. Product Overview
This high-precision 4-channel single-mode fiber array (4CH SMFA) utilizes a high-quality quartz glass substrate and is specifically designed for multi-channel optical interconnects and silicon photonic chip coupling.
2. Product Features
| Parameters | Unit | Spec. | Value |
| Channel | / | 4 | OK |
| Material | / | Quartz Glass | OK |
| Channel Spacing | μm | 250 | OK |
| Polishing Angle | Degree | A8° | OK |
| Package(L)X(W)X(H) | mm | 10*2.5*2.5 | OK |
| Insertion Loss | dB | ≤0.3 | |
| Fiber Type | / | SMF-28e | OK |
| Fiber Tube | mm | 0.9 | OK |
| Tube Color | / | White | OK |
| Length | m | 1±0.1 | OK |
| Connector | / | FC/APC | OK |
| Operating Temperature (℃) | 0～65 | OK | |
| Storage Temperature (℃) | -40～85 | OK | |
Ultra-low insertion loss (< 0.3 dB)
High-precision 250μm channel pitch
Corning SMF-28e single-mode fiber
All-quartz glass substrate (10×2.5×2.5mm)
High-precision A8° end-face grinding
High-standard FC/APC connectors
3. Applications
Planar waveguide device integration (PLC)
High-speed optical transceiver module packaging
Silicon photonic integrated chip coupling
High-density multi-channel optical interconnects
