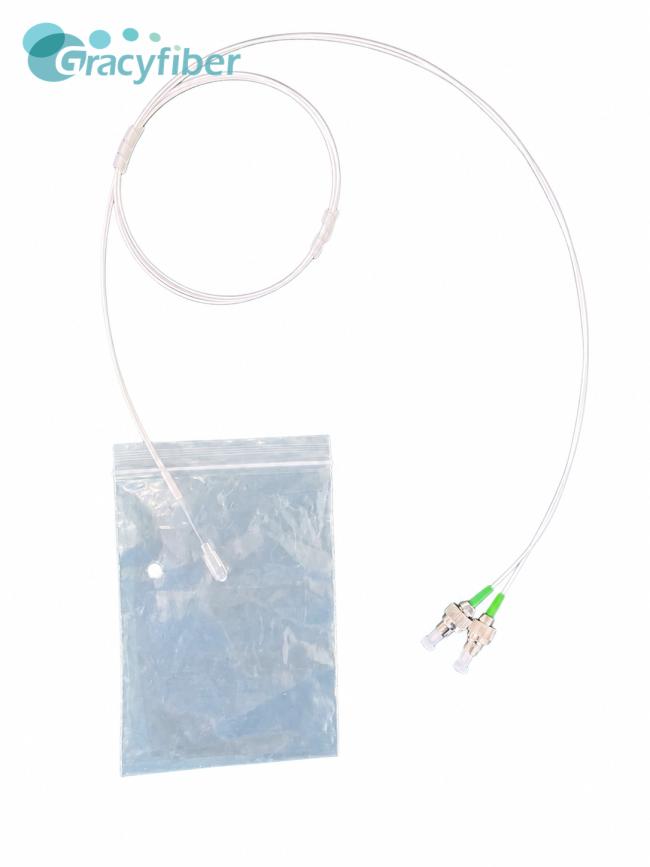

4CH SM Fiber Array (SMFA) | 250μm Pitch, Quartz Glass V-Groove | 8° Angled Polish, Corning SMF-28e | 1m Length, FC/APC
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Product Description
4CH SM Fiber Array (SMFA) | 250μm Pitch, Quartz Glass V-Groove | 8° Angled Polish, Corning SMF-28e | 1m Length, FC/APC
Product Description
This 4CH SMFA Fiber Array Assembly is a single-mode fiber optic array assembly designed for high-precision optical coupling and device packaging applications.
Key Features
| Parameters | Unit | Spec. | Value |
|---|---|---|---|
| Channel | / | 4 | OK |
| Material | / | Quartz Glass | OK |
| Channel Spacing | μm | 250 | OK |
| Polishing Angle | Degree | A8° | OK |
| Package(L)X(W)X(H) | mm | 10*2.5*2.5 | OK |
| Insertion Loss | dB | ≤0.3 | |
| Fiber Type | / | SMF-28e | OK |
| Fiber Tube | mm | 0.9 | OK |
| Tube Color | / | White | OK |
| Length | m | 1±0.1 | OK |
| Connector | / | FC/APC | OK |
| Operating Temperature (℃) | 0～65 | OK | |
| Storage Temperature (℃) | -40～85 | OK | |
4-Channel Single-Mode Fiber Array Structure
- Quartz Glass Material
- Channel Spacing 250μm
- One end: 0° polished capillary with coating
- The other end: FC/APC connector
- Uses Corning SMF-28e Fiber
- 0.9mm White Loose Tube
- Standard Length 200±10cm
- Insertion Loss ≤0.3dB
Applications
- Optical Chip and Fiber Array Coupling
- Optical Device Packaging and Alignment
- Photonic Packaging
- Fiber Interconnect
- Optical Communication Test Platform
- Laboratory Precision Optical Path Connection
