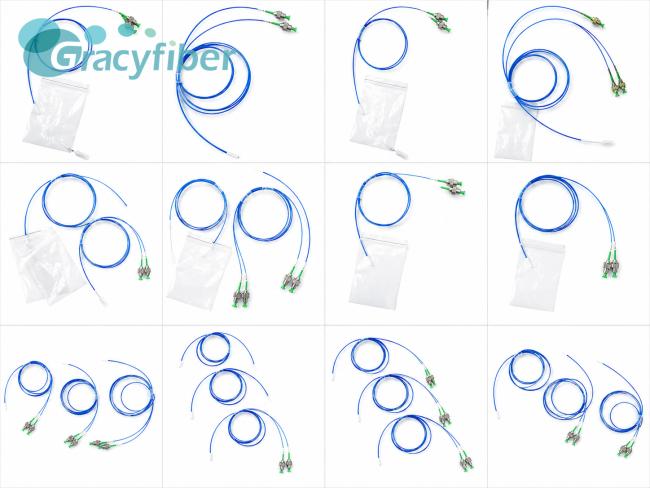

Custom 1CH PMFA Block (0.753mm Thickness) | Slow Axis Aligned FC/APC | PM1550 0.9mm Blue Tube | Component for Coherent Comm
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Product Description
Custom 1CH PMFA Block (0.753mm Thickness) | Slow Axis Aligned FC/APC | PM1550 0.9mm Blue Tube | Component for Coherent Comm
1. Product Overview
Gracyfiber manufactures high-precision single-channel polarization-maintaining fiber arrays (1CH PMFAs) using high-quality quartz glass substrates, specifically designed for precision polarization control in compact spaces.
2. Product Features
| Parameters | Unit | Spec. | Value |
|---|---|---|---|
| Channel | / | 24 | OK |
| Material | / | Quartz Glass | OK |
| Channel Spacing | μm | 127 | OK |
| Polishing Angle | Degree | 0° | OK |
| Package(L)X(W)X(H) | mm | 12*5.7*1.5 | OK |
| Insertion Loss | dB | ≤0.3 | |
| Extinction Ratio | dB | ≥18 | 25 |
| FA PM Fiber Alignment | / | PMII | OK |
| Connctor PM Fiber Alignment | / | Slow Axis Alignment Key |
OK |
| Fiber Type | / | PM1550(Corning) | OK |
| Fiber Tube | mm | 0.9 | OK |
| Tube Color | / | Blue | OK |
| Length | m | 1±0.1 | OK |
| Connector | / | FC/APC | OK |
| Operating Temperature (℃) | 0～65 | OK | |
| Storage Temperature (℃) | -40～85 | OK | |
- Ultra-low insertion loss (< 0.3 dB)
- Ultra-high extinction ratio (> 18 dB, typical 25 dB)
- Corning PM1550 polarization-maintaining fiber
- FC/APC connector (slow-axis keying for precise positioning)
- High-precision 0° end-face grinding (A0°)
- 8*2.5*0.753mm ultra-thin quartz glass package
- PM II fiber array polarization alignment process
3. Applications
- Coherent optical communication system packaging
- Fiber optic gyroscopes (FOGs) and precision optical sensing
- Silicon photonic integrated circuit (PIC) coupling
- High-performance polarization-maintaining waveguide device integration
- Ultra-compact high-speed optical module internal connections
