1CH SM Fiber Array | 0° Flat Polish, Quartz Block 2.5x2.5x7.9mm | Corning SMF-28e, FC/PC | Low IL <0.3dB, High RL >55dB

1CH SM Fiber Array | 0° Flat Polish, Quartz Block 2.5x2.5x7.9mm | Corning SMF-28e, FC/PC | Low IL <0.3dB, High RL >55dB

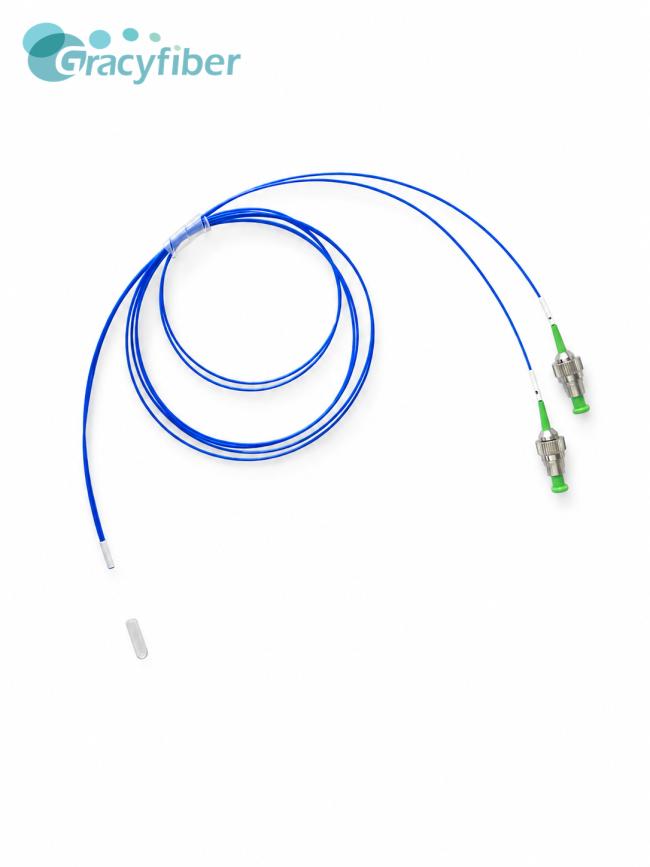

This product is a 1-channel single-mode fiber array (SMFA), using quartz glass and Corning SMF-28e single-mode fiber, with a polishing angle of A0°.

Single-channel single-mode fiber array design
Adopting a 1CH structure, it is suitable for precise coupling, transmission, and optical device packaging applications of single-path optical signals.

Low insertion loss performance
Insertion loss IL < 0.3 dB, effectively reducing optical link loss and improving optical signal transmission efficiency.

High return loss performance
Return loss RL > 55 dB, helping to reduce end-face reflections and improve system transmission stability.

Compact FA structure
Using Quartz Glass, the FA size is 2.5 * 2.5 * 7.9 mm, with a compact structure that facilitates integration into compact optical devices.

Comprehensive connectivity and protection configuration
Equipped with Corning SMF-28e single-mode fiber and FC/PC connectors, with a length of 100 ± 10 cm including the connector, and an external 0.9 mm white loose tube for easy installation, testing, and system connection.

• Single-mode fiber optic communication systems
• Optical module and optical device packaging
• Optical path coupling for lasers, modulators, and detectors
• Silicon photonic chip coupling and photonic integrated packaging
• Fiber optic sensing and test/measurement systems
• Laboratory optical path coupling platforms and precision optical equipment
