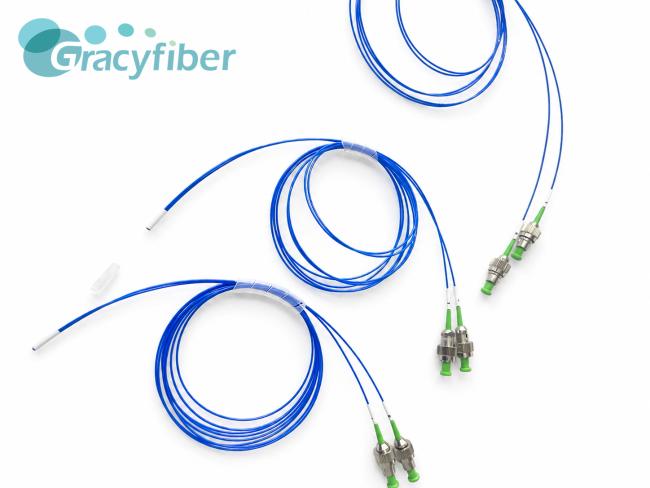

Single Channel Single Mode FA | 0 Degree Polish, 1m SMF-28e Fiber | FC-PC Connector | Compact Telecom Grade Fiber Pigtail
1. Product Overview
Gracyfiber's high-precision single-channel single-mode fiber array (1CH SMFA) utilizes a premium quartz glass substrate and is specifically designed for high-density optical interconnects and coupling of miniature optical devices.
2. Product Features
| Parameters | Unit | Spec. | Value |
|---|---|---|---|
| Channel | / | 24 | OK |
| Material | / | Quartz Glass | OK |
| Channel Spacing | μm | 127 | OK |
| Polishing Angle | Degree | 0° | OK |
| Package(L)X(W)X(H) | mm | 12*5.7*1.5 | OK |
| Insertion Loss | dB | ≤0.3 | |
| Extinction Ratio | dB | ≥18 | 25 |
| FA PM Fiber Alignment | / | PMII | OK |
| Connctor PM Fiber Alignment | / | Slow Axis Alignment Key |
OK |
| Fiber Type | / | PM1550(Corning) | OK |
| Fiber Tube | mm | 0.9 | OK |
| Tube Color | / | Blue | OK |
| Length | m | 1±0.1 | OK |
| Connector | / | FC/APC | OK |
| Operating Temperature (℃) | 0～65 | OK | |
| Storage Temperature (℃) | -40～85 | OK | |
- Ultra-low insertion loss (< 0.3 dB)
- High return loss (> 55 dB)
- Corning SMF-28e single-mode fiber
- FC/PC high-standard connectors
- High-precision 0° end-face grinding (A0°)
- 2.5*2.5*7.9mm miniature quartz glass package
3. Applications
- High-speed optical transceiver module packaging
- Silicon photonic integrated circuit (PIC) coupling
- Miniature active/passive optical device integration
- High-density optical interconnect networks
- High-precision fiber optic sensing and test systems
