Product Description
40CH 100G DWDM AAWG Module Flat Top C16 C55 Fiber Optic Mux Demux Low Insertion Loss FC APC for DWDM Transmission and Optical Network
1. Product Overview

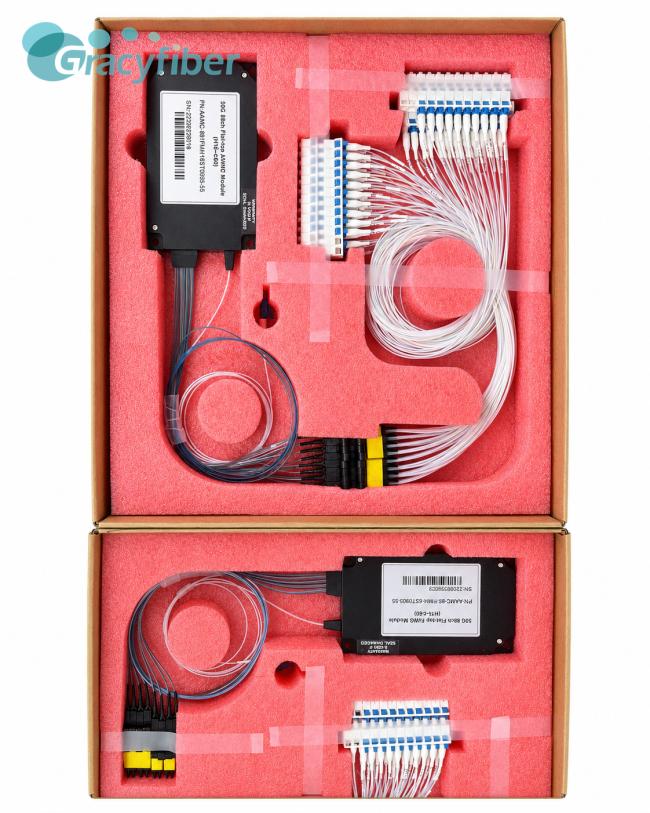

Gracyfiber's high-end 40-channel 100G DWDM AAWG module utilizes flat-top chip technology, precisely covering the C16-C55 operating frequency band.
2. Product Features
| Parameters | Unit | 100G DWDM AAWG Module |
|---|---|---|
| Channel | CH | 40 |
| Chip type | Flat Top | |
| Operating wavelength | nm | 1525~1565 (Please see the order notes for specific wavelength requirements.) |
| Channel Spacing | GHz | 100 |
| Channel Pass band | nm | ITU±0.11 |
| Insertion Loss | dB | ≤5.6 |
| Bandwidth@1dB | nm | ≥0.4 |
| Bandwidth@3dB | nm | ≥0.6 |
| Adjacent Isolation | dB | ≥23 |
| Non-adjacent Isolation | dB | ≥29 |
| Non-adjacent Crosstalk | dB | ≥21 |
| Return Loss | dB | ≥45 |
| Directivity | dB | ≥50 |
| Channel Uniformity | dB | ≤1.5 |
| Ripple | dB | ≤0.5 |
| Chromatic Dispersion | ps/nm | ±20 |
| Operating Temperature | °C | -5~+65 |
| Packaging dimension | mm | L120xW70xH11 |
- Flat-top 40-channel DWDM (C16-C55)
- 100GHz standard ITU grid spacing
- Low insertion loss (≤ 5.6 dB)
- Excellent channel uniformity (≤ 1.5 dB)
- Wide passband design (1dB bandwidth ≥ 0.4 nm)
- Customized composite pigtail (ribbon fiber combined with 0.9mm loose tube)
- FC/APC high-standard connector
- 120×70×11mm ultra-thin compact package
3. Applications
- High-capacity DWDM transmission system expansion
- Long-haul trunk and metropolitan area network (MAN) backbone nodes
- High-density data center interconnect (DCI)
- Optical add-drop multiplexer (OADM) networking
- 5G bearer network and broadband transmission system
