32CH 100G DWDM AAWG Module Gaussian C21 C52 Plus 1310nm FWDM Fiber Optic Mux Demux Low Insertion Loss LC UPC for Optical Network
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Product Description
32CH 100G DWDM AAWG Module Gaussian C21 C52 Plus 1310nm FWDM Fiber Optic Mux Demux Low Insertion Loss LC UPC for Optical Network
1. Product Overview

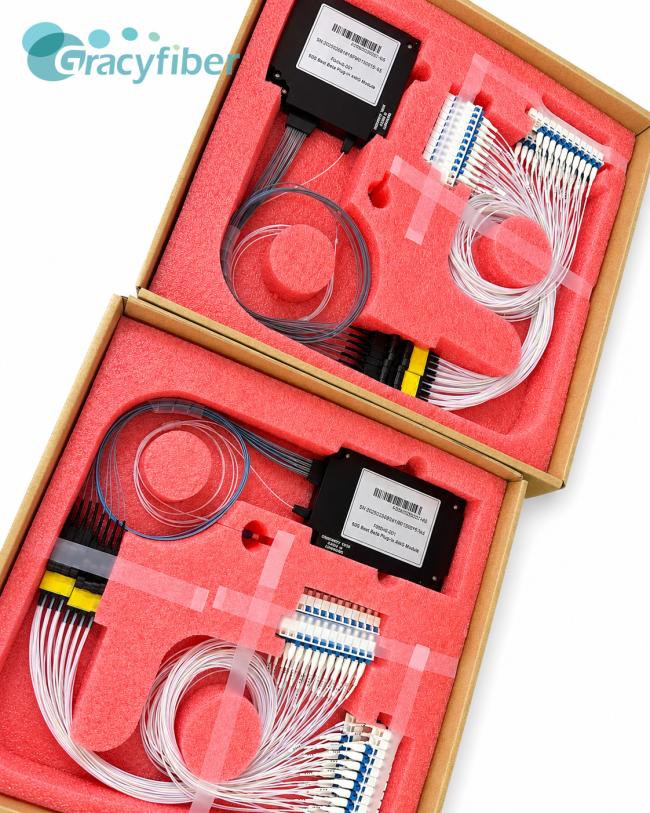

Gracyfiber's Gaussian 32-channel 100G DWDM AAWG module is designed for high-capacity optical network expansion.
2. Features
| Parameters | Unit | 40CH 100G DWDM AAWG Module |
|---|---|---|
| Channel | CH | 40 (C21~C60) |
| Chip type | Gaussian | |
| Operating wavelength | nm | 1500~1570 |
| Channel Spacing | GHz | 100 |
| Channel Pass band | nm | ITU±0.11 |
| Insertion Loss | dB | ≤3.5 |
| Bandwidth@1dB | nm | ≥0.2 |
| Bandwidth@3dB | nm | ≥0.4 |
| Adjacent Isolation | dB | ≥26 |
| Non-adjacent Isolation | dB | ≥31 |
| Return Loss | dB | ≥40 |
| Directivity | dB | ≥50 |
| Channel Uniformity | dB | ≤1.5 |
| Ripple | dB | ≤1.5 |
| Chromatic Dispersion | ps/nm | ±20 |
| Operating Temperature | °C | -5~+65 |
| Packaging dimension | mm | L120*W70*H11 |
- Gaussian 32-channel DWDM (C21-C52)
- Integrated 1310nm specific expansion/monitoring port
- 100GHz standard ITU grid spacing
- Low insertion loss (≤ 3.8 dB)
- High isolation between adjacent and non-adjacent channels
- Customized ribbon and transparent loose tube composite pigtails
- LC/UPC high-standard connectors
3. Applications
- High-capacity DWDM transmission system expansion
- Long-haul trunk and metropolitan area network (MAN) backbone nodes
- High-density data center interconnect (DCI)
- Optical add-drop multiplexer (OADM) networking
- Multi-service transmission platform (MSTP) integration
