40 Channel 100GHz Flat Top DWDM AAWG Module AAWG 40 LL C21 C60 Low Insertion Loss LC UPC Fiber Optic Multiplexer Demultiplexer
1. Product Overview

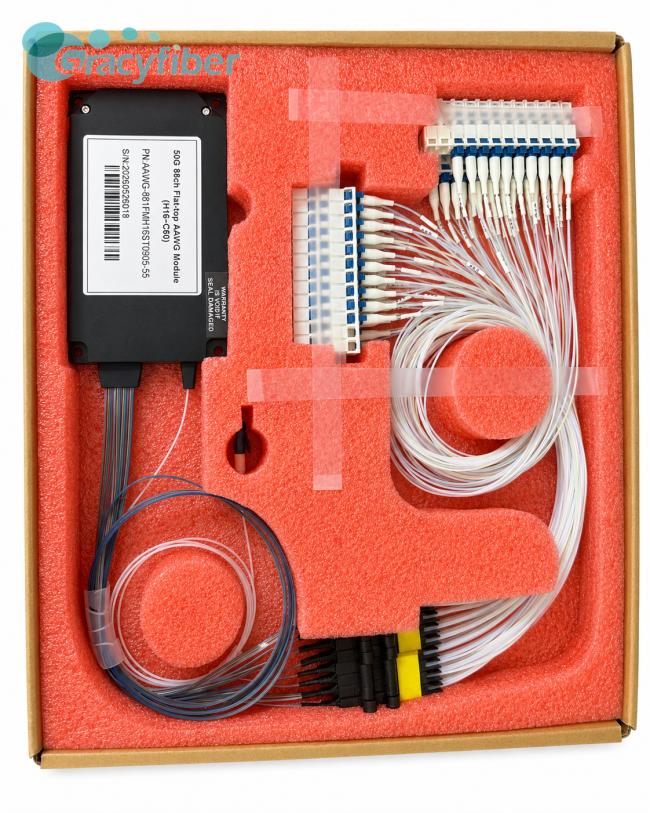

This product is the AAWG-40-LL 40-wavelength 100GHz DWDM AAWG module, featuring a flat-top AAWG design covering channels C21–C60.
2. Core Product Features
| Parameters | Unit | 48CH 100G DWDM AAWG Module |
|---|---|---|
| Channel | CH | 48 (C14~C61) |
| Chip type | / | Flat Top |
| Operating wavelength | nm | 1525~1565 |
| Channel Spacing | GHz | 100 |
| Channel Pass band | nm | ITU±0.11 |
| Insertion Loss | dB | ≤5.8 (典型值≤5.5) |
| Bandwidth@1dB | nm | ≥0.4 |
| Bandwidth@3dB | nm | ≥0.6 |
| Adjacent Isolation | dB | ≥23 |
| Non-adjacent Isolation | dB | ≥29 |
| Non-adjacent Crosstalk | dB | ≥21 |
| Return Loss | dB | ≥45 |
| Directivity | dB | ≥50 |
| Channel Uniformity | dB | ≤1.5 |
| Ripple | dB | ≤0.5 |
| PDL | dB | ≤0.5 |
| Chromatic Dispersion | ps/nm | ±20 |
| Operating Temperature | °C | -5~+65 |
| Packaging dimension | mm | L120*W70*H11 |
- 40-wavelength DWDM channel design
- Flat-top AAWG structure
- Low insertion loss performance
- Excellent isolation and low crosstalk
- Engineering-engineered packaging and fiber output configuration
3. Applications
- 100G integrated wavelength division multiplexing transmission systems
- DWDM dense wavelength division multiplexing/demultiplexing systems
- Metropolitan area networks, backbone networks, and carrier optical transmission networks
- Data center interconnection and high-capacity link expansion
- Integration of optical transmission equipment, wavelength division platforms, and subsystems
- Multi-wavelength optical signal testing, monitoring, and laboratory verification platforms
