Product Description
48CH 100GHz DWDM AAWG Module Flat Top C15 C62 Low Loss Fiber Optic Mux Demux LC UPC for C Band Optical Network
1. Product Overview
This 48-channel 100G DWDM AAWG module utilizes flat-top chip technology, precisely covering the C15-C62 operating frequency band.
2. Product Features
| Parameters | Unit | 48CH 100G DWDM AAWG Module |
|---|---|---|
| Channel | CH | 48 (C14~C61) |
| Chip type | / | Flat Top |
| Operating wavelength | nm | 1525~1565 |
| Channel Spacing | GHz | 100 |
| Channel Pass band | nm | ITU±0.11 |
| Insertion Loss | dB | ≤5.8 |
| Bandwidth@1dB | nm | ≥0.4 |
| Bandwidth@3dB | nm | ≥0.6 |
| Adjacent Isolation | dB | ≥23 |
| Non-adjacent Isolation | dB | ≥29 |
| Non-adjacent Crosstalk | dB | ≥21 |
| Return Loss | dB | ≥45 |
| Directivity | dB | ≥50 |
| Channel Uniformity | dB | ≤1.5 |
| Ripple | dB | ≤0.5 |
| PDL | dB | ≤0.5 |
| Chromatic Dispersion | ps/nm | ±20 |
| Operating Temperature | °C | -5~+65 |
| Packaging dimension | mm | L120*W70*H11 |
- Flat-top 48-channel DWDM (C15~C62)
- 100GHz standard ITU grid spacing
- Low insertion loss ≤5.5 dB
- Excellent channel uniformity ≤1.5 dB
- Wide passband design (1dB bandwidth ≥0.4 nm)
- High isolation (adjacent ≥23 dB, non-adjacent ≥29 dB)

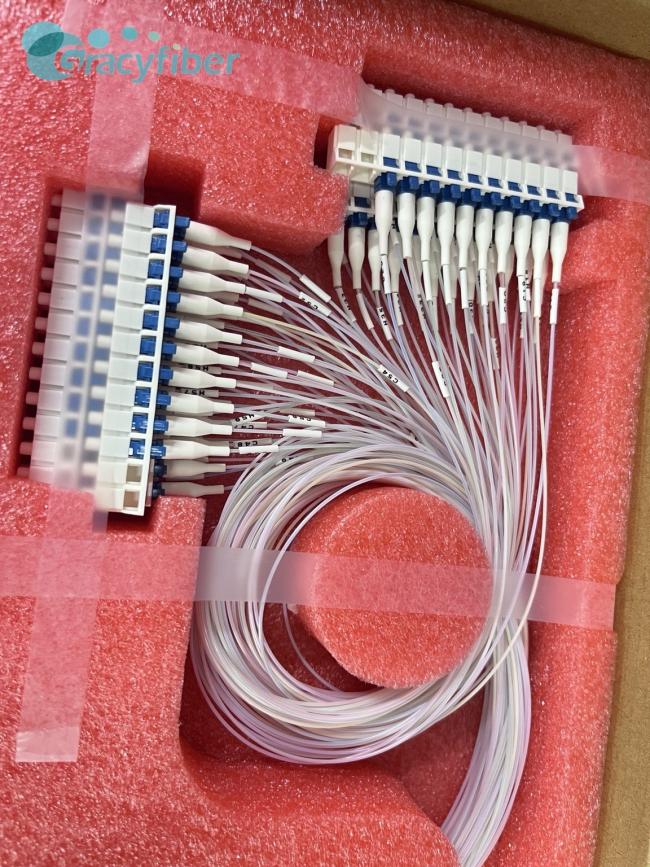

- 0.9mm loose tube branch pigtail (1 meter length)
- Common terminal COM pigtail (1 meter length)
- LC/UPC standard connector
- 120×70×11mm compact package
- Neutral unbranded packaging (OEM friendly)
3. Applications
- High-capacity DWDM transmission system expansion
- Long-haul trunk and metropolitan area network (MAN) backbone nodes
- High-density data center interconnect (DCI)
- Optical add-drop multiplexer (OADM) Networking
- International System Integration and OEM (Original Equipment Manufacturer) Projects
