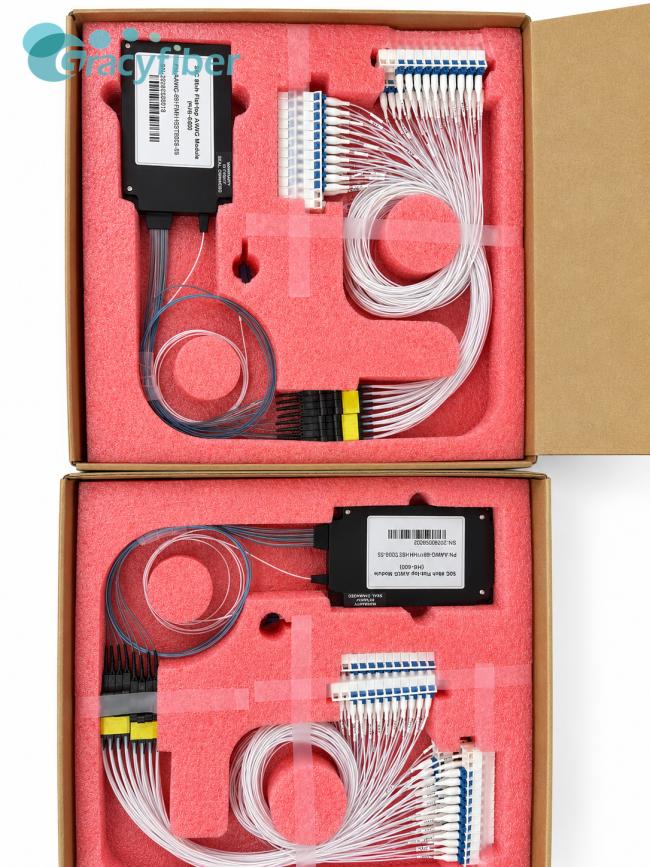

40CH 100GHz DWDM AAWG Module Gaussian C21 C60 Low Insertion Loss FC APC Fiber Optic Mux Demux Black Aluminum Box
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Product Description
40CH 100GHz DWDM AAWG Module Gaussian C21 C60 Low Insertion Loss FC APC Fiber Optic Mux Demux Black Aluminum Box
1. Product Overview
Gracyfiber's high-end customized 40-channel 100G DWDM AAWG module utilizes Gaussian chip technology, precisely covering the C21~C60 operating frequency band.
2. Product Features
| Parameters | Unit | Specification |
|---|---|---|
| Operating Band | C21 ~ C60 | |
| Clear Passband | GHz | ±12.5 |
| Wavelength Accuracy | pm | ±60 |
| 1dB Bandwidth | nm | ≥0.2 |
| 3dB Bandwidth | nm | ≥0.4 |
| 20dB Bandwidth | nm | ≤1.25 |
| Optical Insertion Loss | dB | ≤3.8 |
| Insertion Loss Uniformity | dB | ≤1.2 |
| Ripple | dB | ≤1.5 |
| Polarization Dependent Loss | dB | ≤0.6 |
| Adjacent Channel Isolation | dB | ≥23 |
| Non-adjacent Channel Isolation | dB | ≥30 |
| Polarization Mode Dispersion (PMD)* | ps | ≤0.5 |
| Chromatic Dispersion* | ps/nm | ±20 |
| Optical Return Loss* | dB | ≥40 |
| Package Dimension | mm | 60×80×12 |
- Gaussian 40-channel DWDM (C21~C60)
- Optical Insertion Loss: ≤ 3.8 dB
- Passband Width: ±12.5 GHz
- Adjacent Channel Crosstalk: ≥ 23 dB
- Non-Adjacent Channel Crosstalk: ≥ 30 dB
- Input Fiber: G657A2 (1000±50 mm)
- Output Ribbon Fiber: G652D (1000±50 mm)
- Fan-out Fiber Tube: 0.9 mm (600±50 mm)
- Connector Type: FC/APC
- Maximum Input Optical Power: 400 mW
- Operating/Storage Temperature: -40 ~ +85 °C
- Custom Black Aluminum Case Dimensions: 80×60×12 mm
3. Applications
- 100G Integrated High-Density Wavelength Division Multiplexing System
- Integration of Industrial-Grade Optical Communication Equipment for Extreme Environments
- Long-haul Backbone and Metropolitan Area Network (MAN) Backbone Node Expansion
- High-Density Data Center Interconnect (DCI)
- Customized High-Standard Rack and Cabling Projects
