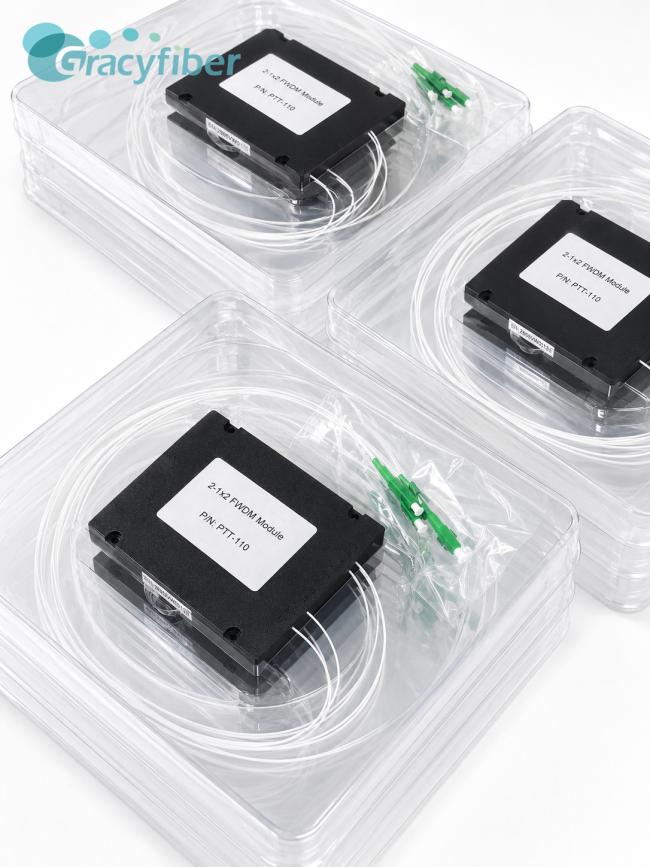

Dual 1x2 FWDM Cascaded Module DATA T1260 1600nm OTDR R1650nm LC APC Fiber Optic WDM Filter Module for PON FTTx Optical Line Monitoring
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Product Description
Dual 1x2 FWDM Cascaded Module DATA T1260 1600nm OTDR R1650nm LC APC Fiber Optic WDM Filter Module for PON FTTx Optical Line Monitoring
1. Product Overview
Gracyfiber's high-end customized 40-channel 100G DWDM AAWG module utilizes Gaussian chip technology, precisely covering the C21~C60 operating frequency band.
2. Product Features
| Parameters | Specifications | Unit |
|---|---|---|
| Operating Wavelength | 1260-1660 | nm |
| Pass band Wavelength | 1260-1600 | nm |
| Reflect band Wavelength | 1640-1660 | nm |
| Insertion Loss (COM IN - DATA1 & COM OUT - DATA2) | ≤1.1 | dB |
| Insertion Loss (COM IN to COM OUT) | ≤1.9 | dB |
| Isolation (COM IN - DATA1 & COM OUT - DATA2) | ≥40 | dB |
| Isolation (COM IN to COM OUT) | ≥30 | dB |
| Insertion Loss Temperature Sensitivity | ≤0.5 | dB |
| Wavelength Temperature Shifting | ≤0.002 | nm/℃ |
| PDL | ≤0.1 | dB |
| PMD | ≤0.15 | ps |
| Ripple | ≤0.5 | dB |
| Directivity | ≥50 | dB |
| RL | ≥50 | dB |
| Maximum Power Handling | 500 | mW |
| Operating Temperature | -40~+85 | ℃ |
| Storage Temperature | -40~+85 | ℃ |
| Fiber Type | G657A | / |
| Tube Type | 0.9mm Loose Tube (Hytrel) | / |
| Tube Color | White | / |
| Input/Output Length | 500±50 | mm |
| Connector Type | LC/APC | / |
| Package Dimension (ABS Box) | L100*W80*H10 | mm |
- Gaussian 40-channel DWDM (C21~C60)
- Optical Insertion Loss: ≤ 3.8 dB
- Passband Width: ±12.5 GHz
- Adjacent Channel Crosstalk: ≥ 23 dB
- Non-Adjacent Channel Crosstalk: ≥ 30 dB
- Input Fiber: G657A2 (1000±50 mm)
- Output Ribbon Fiber: G652D (1000±50 mm)
- Fan-out Fiber Tube: 0.9 mm (600±50 mm)
- Connector Type: FC/APC
- Maximum Input Optical Power: 400 mW
- Operating/Storage Temperature: -40 ~ +85 °C
- Custom Black Aluminum Case Dimensions: 80*60*12 mm
3. Applications
- 100G Integrated high-density wavelength division multiplexing (WDM) systems
- Integration of industrial-grade optical communication equipment for extreme environments
- Long-haul trunk and metropolitan area network (MAN) backbone node expansion
- High-density data center interconnect (DCI)
- Customized high-standard rack and room cabling projects
