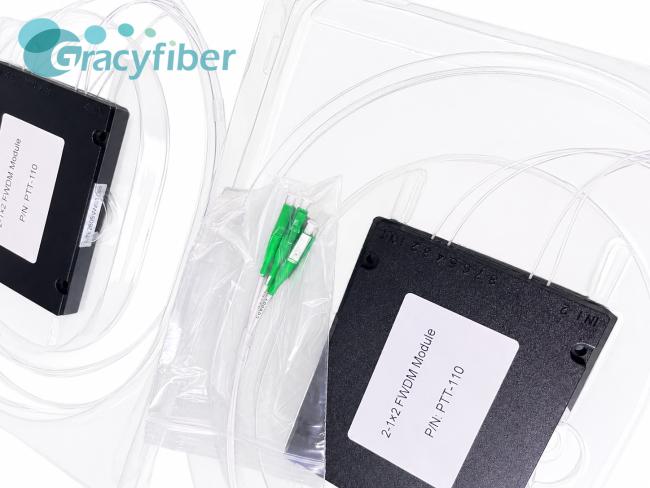

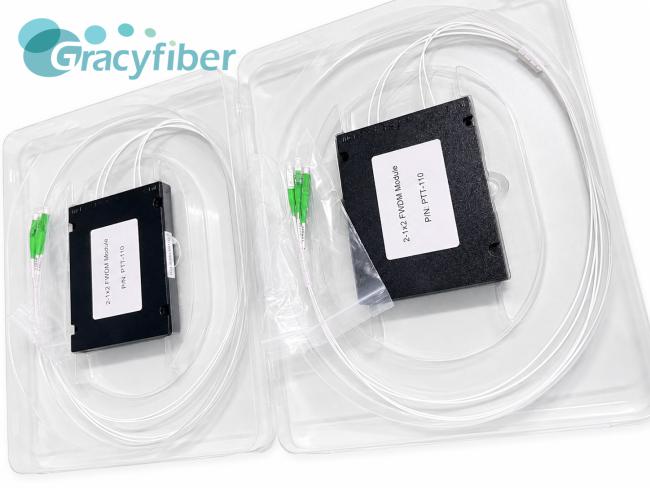

Dual 1x2 FWDM Cascaded Module DATA T1260 1600nm OTDR R1650nm LC APC Fiber Optic WDM Filter Module for PON FTTx Optical Line Monitoring
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Product Description
Dual 1x2 FWDM Cascaded Module DATA T1260 1600nm OTDR R1650nm LC APC Fiber Optic WDM Filter Module for PON FTTx Optical Line Monitoring
1. Product Overview

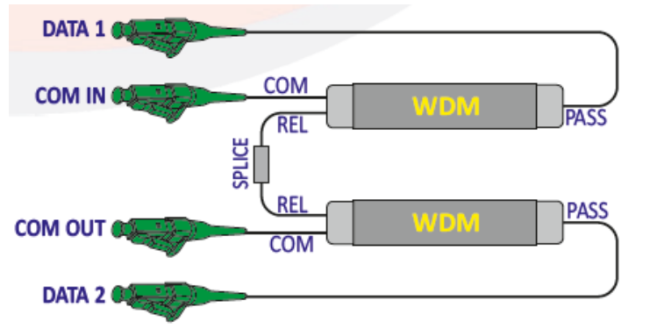

The 2 (1*2) FWDM cascade modules support 1260~1600nm data band transmission and 1640~1660nm OTDR monitoring band reflection, suitable for integrated applications of data service transmission and line monitoring.
2. Core Product Features
| Parameters | Specifications | Unit |
|---|---|---|
| Operating Wavelength | 1260-1660 | nm |
| Pass band Wavelength | 1260-1600 | nm |
| Reflect band Wavelength | 1640-1660 | nm |
| Insertion Loss (COM IN - DATA1 & COM OUT - DATA2) | ≤1.1 | dB |
| Insertion Loss (COM IN to COM OUT) | ≤1.9 | dB |
| Isolation (COM IN - DATA1 & COM OUT - DATA2) | ≥40 | dB |
| Isolation (COM IN to COM OUT) | ≥30 | dB |
| Insertion Loss Temperature Sensitivity | ≤0.5 | dB |
| Wavelength Temperature Shifting | ≤0.002 | nm/℃ |
| PDL | ≤0.1 | dB |
| PMD | ≤0.15 | ps |
| Ripple | ≤0.5 | dB |
| Directivity | ≥50 | dB |
| RL | ≥50 | dB |
| Maximum Power Handling | 500 | mW |
| Operating Temperature | -40~+85 | ℃ |
| Storage Temperature | -40~+85 | ℃ |
| Fiber Type | G657A | / |
| Tube Type | 0.9mm Loose Tube (Hytrel) | / |
| Tube Color | White | / |
| Input/Output Length | 500±50 | mm |
| Connector Type | LC/APC | / |
| Package Dimension (ABS Box) | L100*W80*H10 | mm |
- DATA Transmission Band: 1260~1600nm
- OTDR Reflection Band: 1640~1660nm
- Low Insertion Loss, Typical IL≤1.1dB / ≤1.9dB
- High Isolation, Up to ≥40dB
- Low PDL≤0.1dB, Low PMD≤0.15ps
- LC/APC Connector, G657A Fiber Optic
- ABS Box Package Size 100*80*10mm
3. Application Scope
- PON/FTTx Optical Access Networks
- OTDR Online Monitoring System
- Optical Line Protection and Fault Location
- Data Service and Monitoring Wavelength Multiplexing System
- Optical Communication Transmission Equipment Integration
- ODN Network Construction and Maintenance
- Carrier Fiber Optic Link Monitoring System
