12x1x2 FWDM Module 1650nm OTDR Reflect 1260 1620nm Pass LC APC MPO APC Fiber Optic WDM Filter for Optical Line Monitoring
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Product Description

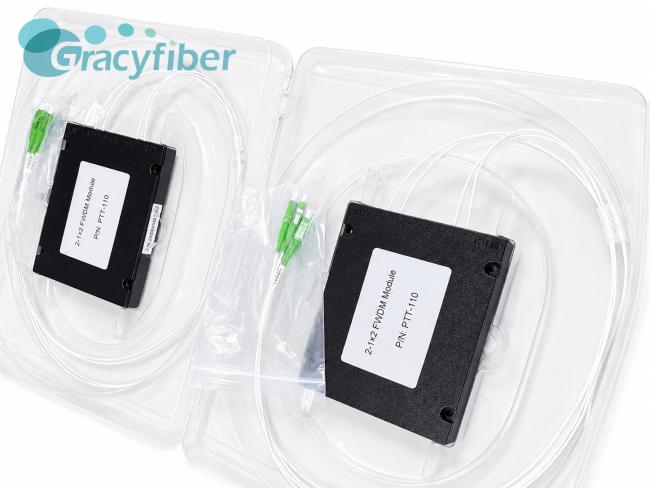

12x1x2 FWDM Module 1650nm OTDR Reflect 1260 1620nm Pass LC APC MPO APC Fiber Optic WDM Filter for Optical Line Monitoring
1. Product Overview
This product is a 12×(1×2) FWDM wavelength division multiplexing module, supporting 1260–1620 nm data channel transmission and 1650±10 nm OTDR monitoring band reflection.
2. Core Product Features
| Parameters | Specifications | Unit |
| Operating Wavelength | 1260-1660 | nm |
| Pass band Wavelength | 1260-1620 | nm |
| Reflect band Wavelength | 1640-1660 | nm |
| Insertion Loss (COM<-->Pass) | ≤1.0 | dB |
| Insertion Loss (COM<-->Reflect) | ≤0.8 | dB |
| Isolation (Pass Channel) | ≥40 | dB |
| Isolation (Reflect Channel) | ≥15 | dB |
| Insertion Loss Temperature Sensitivity | ≤0.5 | dB |
| Wavelength Temperature Shifting | ≤0.002 | nm/°C |
| PDL | ≤0.1 | dB |
| PMD | ≤0.15 | ps |
| Ripple | ≤0.5 | dB |
| Directivity | ≥55 | dB |
| Return Loss (RL) | ≥50 | dB |
| Maximum Power Handling | 500 | mW |
| Operating Temperature | -40~+85 | °C |
| Storage Temperature | -40~+85 | °C |
| Fiber Type | G657A2 | / |
| Tube Type (COM Port) | 0.9mm Blue Loose Tube (Hytrel) | / |
| Tube Type (PASS Port) | 0.9mm White Loose Tube (Hytrel) | / |
| Tube Type (Reflect Port) | 3.0mm Yellow Loose Tube (LSZH) | / |
| Fiber Length (COM Port) | 500±50 | mm |
| Fiber Length (PASS Port) | 500±50 | mm |
| Fiber Length (Reflect Port) | 0.9m±50mm | / |
| Connector (COM & PASS Port) | LC/APC | / |
| Connector (Reflect Port) | 12F MPO/APC(Female) | / |
| Package Dimension (ABS Box) | L100×W80×H10 | mm |
- Data and OTDR band separation
- 12×(1×2) integrated structure
- Low insertion loss design
- Completely engineered connection configuration
3. Applications
- FTTx/PON optical access networks
- 1650 nm OTDR online monitoring system
- Multi-core fiber optic link detection and maintenance
- Shared fiber transmission of data and monitoring services
- Integration of optical transmission equipment, monitoring modules, and passive wavelength division multiplexing systems
- Metropolitan area networks, access networks, and operator fiber optic operation and maintenance platforms
