1×2FWDM,T1260-1620,R1650,5.5×60steetube pkg,COM0.9 Com: SC/APC, Pass:LC/PC and reflect:SC/APC 1.2 MTR
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Product Description
1×2FWDM,T1260-1620,R1650,5.5×60steetube pkg,COM0.9 Com: SC/APC, Pass:LC/PC and reflect:SC/APC 1.2 MTR
1. Specifications
| Parameter | Unit | Value | |
|---|---|---|---|
| Operating Wavelength Rang | nm | 1260-1660 | |
| Pass Band Wavelength | nm | 1260-1620 | |
| Reflect band Wavelength | nm | 1640-1660 | |
| Pass Channel Insertion Loss | dB | ≤1.0 | |
| Reflect Channel Insertion Loss | dB | ≤0.8 | |
| Ripple | dB | ≤0.5 | |
| Pass Channel Isolation | dB | ≥40 | |
| Reflect Channel Isolation | dB | ≥15 | |
| Directivity | dB | ≥55 | |
| Return loss | dB | ≥50 | |
| Thermal Stability | dB/°C | ≤0.005 | |
| Thermal Stability Drift | pm/°C | ≤5 | |
| Polarization Dependent Loss | dB | ≤0.10 | |
| Polarization Mode Dispersion | ps | ≤0.15 | |
| Maximum Power Handling | mW | 500 | |
| Fiber Type | - | SMF-28e | |
| Pigtail Type | COM | - | 0.9mm blue loose tube SC/APC |
| DATA | - | 0.9mm white loose tube LC/PC | |
| OTDR | - | 2.0mm yellow loose tube SC/APC | |
| Fiber Length | COM&DATA,OTDR | m | 1.20±0.05 |
| Operating temperature | ℃ | -5 to +70 | |
| Storage temperature | ℃ | -40 to +85 | |
| Package size | mm | 5.5×60 | |
*Notes: 1.Insertion Loss tested without connector.
2. Reliability Specifications
- Telcordia GR-1209 core
- Telcordia GR-1221 core
- RoHS10 compliance

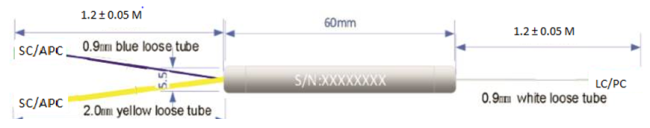

3. Dimensions

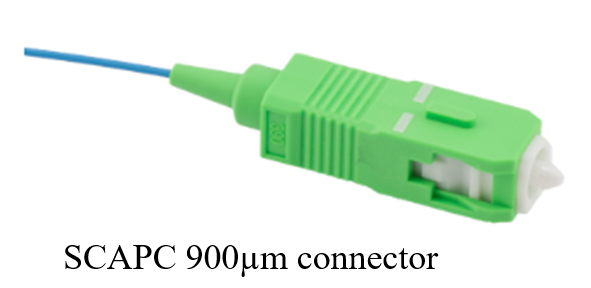

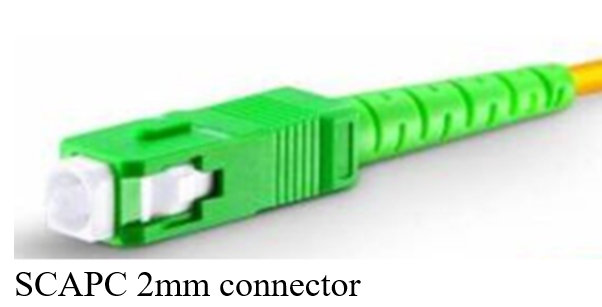

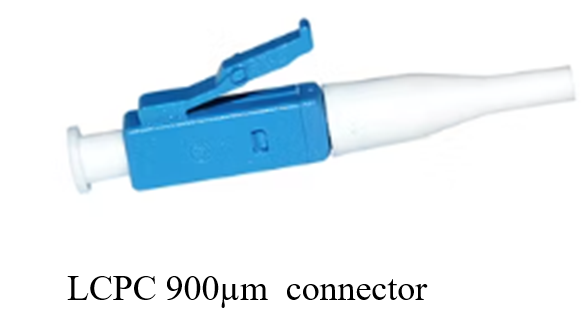

4. Connector image
