12x1x2 FWDM Module LC APC COM PASS 12F MPO APC Reflect Port 1650nm OTDR Monitoring for Optical Line Protection
1. Product Overview
The 12×(1×2) FWDM module supports 1260~1620nm data band transmission and 1650±10nm OTDR monitoring band reflection, suitable for data service transmission and online monitoring of fiber optic links.
2. Core Product Features
| Parameters | Specifications | Unit | |
|---|---|---|---|
| Operating Wavelength | 1260-1660 | nm | |
| Pass band Wavelength | 1260-1620 | nm | |
| Reflect band Wavelength | 1640-1660 | nm | |
| Insertion Loss1 | COM<-->Pass | ≤1.0 | dB |
| COM<-->Reflect | ≤0.8 | dB | |
| Isolation | Pass Channel | ≥40 | dB |
| Reflect Channel | ≥15 | dB | |
| Insertion Loss Temperature Sensitivity | ≤0.5 | dB | |
| Wavelength Temperature Shifting | ≤0.002 | nm/℃ | |
| Polarization Dependent Loss | ≤0.1 | dB | |
| Polarization Mode Dispersion | ≤0.15 | ps | |
| Ripple | ≤0.5 | dB | |
| Directivity | ≥55 | dB | |
| Return Loss | ≥50 | dB | |
| Maximum Power Handing | 500 | mW | |
- 12×(1×2) FWDM Cascade Structure
- Transmission Band: 1260~1620nm, Reflection Band: 1640~1660nm
- Low Insertion Loss: COM↔PASS≤1.0dB, COM↔Reflect≤0.8dB
- High Isolation: Pass Channel≥40dB, Reflect Channel≥15dB
- COM/PASS End: LC/APC, Reflect End: 12F MPO/APC Female
- G657A2 Fiber, Maximum Power Capacity: 500mW
- Operating Temperature: -40~+85℃, Suitable for Harsh Environments
- ABS Box Packaging Dimensions: L100×W80×H10mm
3. Application Scope
- PON/FTTx Optical Access Networks
- OTDR Online Monitoring System
- ODN Optical Distribution Network
- Fiber Optic Link Fault Location and Maintenance
- Data Service and Monitoring Wavelength Multiplexing System
- Carrier Fiber Optic Network Monitoring System
- Integration of Optical Communication Equipment and Line Monitoring Modules

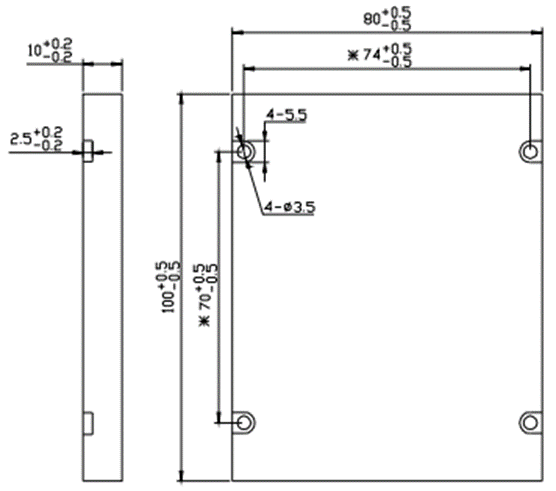

4. Mechanical Dimensions

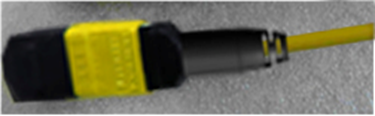

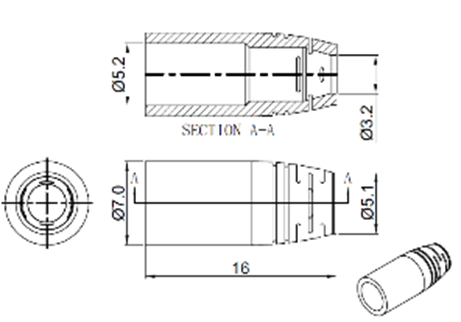

5. MPO Boot Diagram
