Product Description
12 Channel FWDM Module DATA 1260 1620nm OTDR 1650nm Reflect LC APC 12F MPO APC Female for Optical Line Monitoring
1. Product Overview
This product is the PTT-109 12*(1*2) FWDM wavelength division multiplexing module, supporting 1260–1620 nm data channel transmission and 1650±10 nm OTDR monitoring band reflection.
2. Core Product Features
| Parameters | Specifications | Unit | |
|---|---|---|---|
| Operating Wavelength | 1260-1660 | nm | |
| Pass band Wavelength | 1260-1620 | nm | |
| Reflect band Wavelength | 1640-1660 | nm | |
| Insertion Loss1 | COM<-->Pass | ≤1.0 | dB |
| COM<-->Reflect | ≤0.8 | dB | |
| Isolation | Pass Channel | ≥40 | dB |
| Reflect Channel | ≥15 | dB | |
| Insertion Loss Temperature Sensitivity | ≤0.5 | dB | |
| Wavelength Temperature Shifting | ≤0.002 | nm/℃ | |
| Polarization Dependent Loss | ≤0.1 | dB | |
| Polarization Mode Dispersion | ≤0.15 | ps | |
| Ripple | ≤0.5 | dB | |
| Directivity | ≥55 | dB | |
| Return Loss | ≥50 | dB | |
| Maximum Power Handing | 500 | mW | |
| Operating Temperature | -40~+85 | ℃ | |
| Storage Temperature | -40~+85 | ℃ | |
| Fiber Type | G657A2 | / | |
- 12-channel FWDM integrated structure
- Data and monitoring band separation
- Low insertion loss design
- High isolation and stable transmission performance

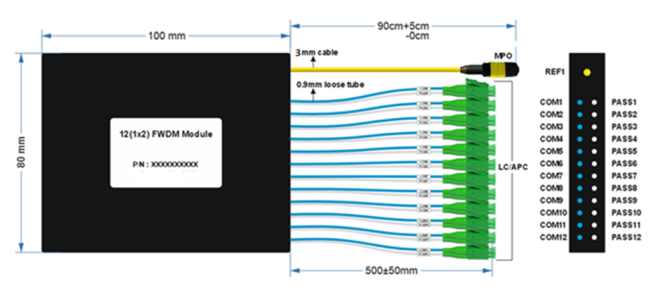

- Engineering-engineered connection and packaging configuration
3. Applications
- FTTx/PON optical access networks
- 1650 nm OTDR online monitoring system
- Multi-core fiber optic link detection and maintenance
- Shared fiber transmission of data and monitoring services
- Integration of optical transmission equipment, monitoring modules, and passive wavelength division multiplexing systems
- Metropolitan area networks, access networks, and operator fiber optic operation and maintenance platforms
4. Reliability RoHS Assurance Requirement
- Telcordia GR-1209 core
- Telcordia GR-1221 core
- RoHS and REACH compliance
