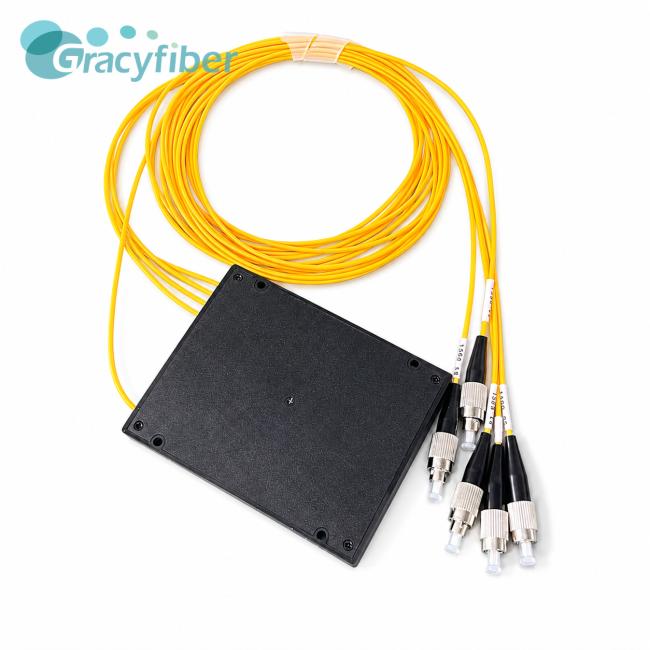

4 Channel LAN WDM Mux Demux Module 1295 1300 1304 1309nm O Band Fiber Optic WDM Module FC UPC Connector

Gracyfiber manufactures high-performance 4-channel LAN-WDM (Local Area Network Wavelength Division Multiplexing) modules designed for 100G/200G high-speed optical communication and 5G fronthaul networks.

• 4-Channel LAN-WDM Design: 1295.56, 1300.05, 1304.58, 1309.14 nm
• Extremely Low Module Insertion Loss: IL ≤ 1.4 dB at room temperature
• High-Quality Core Components: Transmission T ≤ 0.5 dB, Reflection R ≤ 0.3 dB
• Customized Pigtails for Specific Processes: 0.9mm loose tube (external fiber outlet tube length 1m, total internal bare fiber length >1.5m)
• Full-Port Connector: FC/UPC
• Rugged Housing Design: 120×80×18 mm high-strength ABS plastic enclosure

• 100G/200G High-Speed ​​Optical Communication System Integration
• Large-scale Deployment and Channel Expansion of 5G Fronthaul Networks
• Interconnection of High-Density Local Area Networks (LANs) and Metropolitan Area Networks (MANs) Backbone Nodes
• Data Center Interconnect (DCI) and High-Speed ​​Cloud Computing Transmission Networks
• Hybrid Optical Communication Systems of Coarse Wavelength Division Multiplexing (CWDM) and Local Area Network Wavelength Division Multiplexing (LWDM)
