4 Channel 800G LWDM Module O Band Fiber Optic Mux Demux 1295.56 1300.05 1304.58 1309.14nm FC APC Low Loss
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Product Description
4 Channel 800G LWDM Module O Band Fiber Optic Mux Demux 1295.56 1300.05 1304.58 1309.14nm FC APC Low Loss
1. Product Overview
Gracyfiber's 4-channel LWDM (Light Wavelength Division Multiplexing) module is specifically designed for high-speed optical communication and 5G fronthaul networks.
2. Product Features

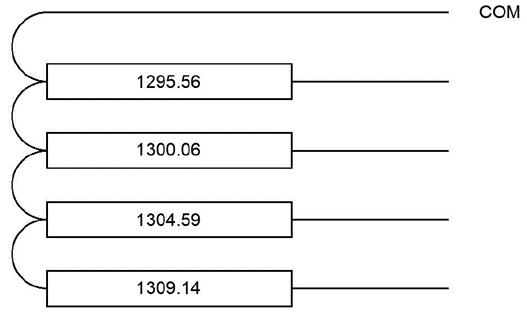

- 4-channel LWDM design (1295.56, 1300.05, 1304.58, 1309.14 nm)
- 800G standard channel pitch (passband tolerance λC ± 1.1 nm)
- Low insertion loss (≤ 1.6 dB)
- High channel isolation (adjacent > 25 dB, non-adjacent > 35 dB)
- Excellent polarization-dependent loss control (PDL ≤ 0.2 dB)
- SMF-28e high-quality single-mode fiber
- 0.9mm white loose tube custom pigtail (0.5 m length)
- Individualized number tube markings (significantly improves high-density cabling and subsequent maintenance efficiency)
- FC/APC high-standard connectors
- 100×80×10 mm compact ABS enclosure
3. Applications
- 100G/200G/400G High-speed optical communication system integration
- 5G fronthaul network deployment and smooth channel expansion
- High-density metropolitan area network (MAN) and local area network (LAN) backbone node interconnection
- Data center interconnect (DCI) and enterprise-grade cloud computing high-speed transmission network
- Space-constrained high-precision fiber optic distribution frames (ODF) and network testing equipment
