4CH O Band LWDM Mux Module 800G Fiber Optic Multiplexer 1295 1300 1304 1309nm FC APC Low Loss for Optical Network
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Product Description
4CH O Band LWDM Mux Module 800G Fiber Optic Multiplexer 1295 1300 1304 1309nm FC APC Low Loss for Optical Network
1. Product Overview

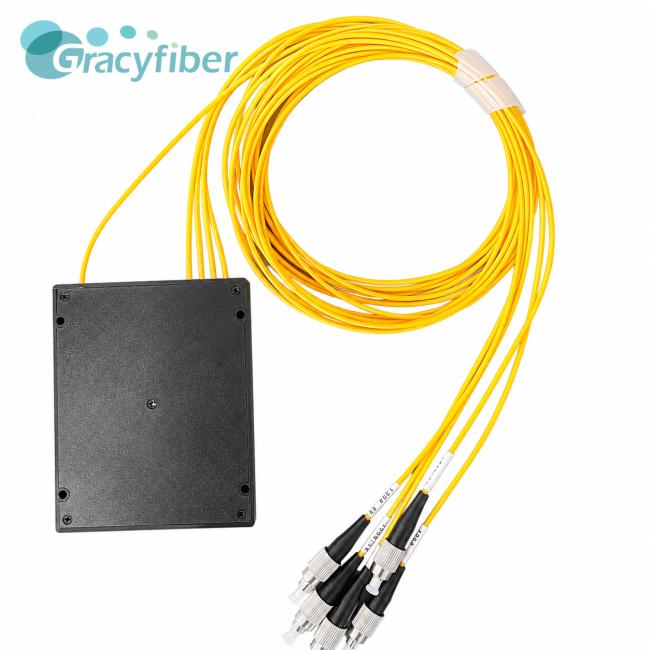

Gracyfiber manufactures a 4-channel LWDM (Fine Wavelength Division Multiplexing) cassette multiplexer (Mux, part number: F74-08003) specifically designed for 5G fronthaul and high-speed optical communication networks.
2. Product Features
| Parameters | Mux | DeMux |
|---|---|---|
| Channel No. | 4CH | 4CH |
| Operating Wavelength (nm) | 1260~1360 | 1260~1360 |
| Channel spacing | 800G | 800G |
| Center Wavelength (nm) | 1295.56 / 1300.05 / 1304.58 / 1309.14 | 1295.56 / 1300.05 / 1304.58 / 1309.14 |
| Pass band (nm) | λc ± 1.1 | λc ± 1.1 |
| Ripple (dB) | < 0.5 | < 0.5 |
| Insertion Loss (dB) | < 1.6 | < 1.6 |
| Isolation (dB) - Adjacent | > 25 | > 25 |
| Isolation (dB) - Non-adjacent | > 35 | > 35 |
| PDL (dB) | ≤0.2 | ≤0.2 |
| RL (dB) | >45 | >45 |
| Directivity (dB) | >50 | >50 |
| Power (mw) | <300 | <300 |
| Fiber Type | SMF-28e | SMF-28e |
| Connector | FC/APC | FC/APC |
| Operating Temperature (℃) | -20~+70 | -20~+70 |
| Storage Temperature (℃) | -40~+85 | -40~+85 |
| Housing (mm) | 100*80*10 | 100*80*10 |
- 4-channel LWDM multiplexing design (1295.56, 1300.05, 1304.58, 1309.14 nm)
- Low insertion loss (≤ 1.8 dB)
- High-quality G657A1 bend-resistant fiber
- Custom 0.9mm white loose tube pigtails (50±5 cm including FC/APC connector, i.e., ≥0.5m)
- Full-port configuration with high-standard FC/APC connectors
- 100×80×10 mm compact ABS enclosure
- High channel isolation and excellent channel uniformity
3. Applications
- 5G fronthaul network (mass deployment and channel multiplexing)
- 100G/200G/400G high-speed Ethernet optical transceiver network
- High-density metropolitan area network (MAN) and local area network (LAN) Backbone Node Interconnection
- Data Center Interconnect (DCI) and High-Speed Cloud Computing Transmission Network
