32 Channel 150GHz DWDM AAWG Module 800G ZR Mux Demux C14.5 C61 LC UPC 19 Inch 1U Rack Mount
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Product Description
32 Channel 150GHz DWDM AAWG Module 800G ZR Mux Demux C14.5 C61 LC UPC 19 Inch 1U Rack Mount
1. Product Overview
This product is a 150GHz AAWG Mux/Demux module designed for 800G-ZR high-speed optical transmission applications. It supports the C14.5–C61 band, with an operating wavelength coverage of 1528.77–1565.9 nm.
2. Core Product Features
| Parameters | Unit | Specification | ||||
|---|---|---|---|---|---|---|
| Min | Type | Max | ||||
| Channel Space | GHz | 150 | ||||
| Nos of Channel | CH | 32 | 40 | |||
| Channel Frequencies | THz | ITU Grid | ||||
| Available Channel Frequency Range | THz | 191.45 | - | 196.1 | ||
| Center Wavelength Accuracy | nm | -0.05 | - | +0.05 | ||
| GHz | -6.25 | - | -6.25 | |||
| PassBand @Center wavelength | nm | -0.10 | - | +0.10 | ||
| GHz | -12.5 | - | +-12.5 | |||
| Bandwidth | @-1.0dB | GHz | 115 | - | - | |
| @-3.0dB | GHz | 160 | - | - | ||
| @-20dB | GHz | - | - | 310 | ||
| Port Insertion Loss | dB | ≤5.3 | ||||
| Isolation | Adjacent | dB | ≥15 | |||
| Non-adjacent | dB | ≥28 | ||||
| Insertion Loss Uniformity at ITU | dB | ≤1.2 | ||||
| Port Insertion Loss Ripple | dB | ≤0.6 | ||||
| PDL | dB | ≤0.5 | ||||
| Return Loss | dB | ≥40 | ||||
| Directivity | dB | ≥50 | ||||
- 150GHz Channel Spacing Design: Utilizes standard 150GHz channel spacing, supports ITU Grid channel frequencies, and is suitable for high-speed coherent transmission systems such as 800G-ZR.
- Wide C-Band Coverage Capability: Operating channels cover C14.5–C61, with a wavelength range of 1528.77–1565.9 nm and a frequency range of 191.45–196.1 THz, meeting the requirements of multi-wavelength DWDM transmission.
- 32CH Mux/Demux Modular Structure: Provides a 32-channel port configuration, enabling multiplexing and demultiplexing of multi-channel optical signals, suitable for integration into high-capacity wavelength division multiplexing transmission platforms.
- Stable Optical Performance: Port insertion loss ≤5.5 dB, insertion loss uniformity ≤1.5 dB, port insertion loss ripple ≤0.6 dB, PDL ≤0.5 dB, contributing to improved system link stability.

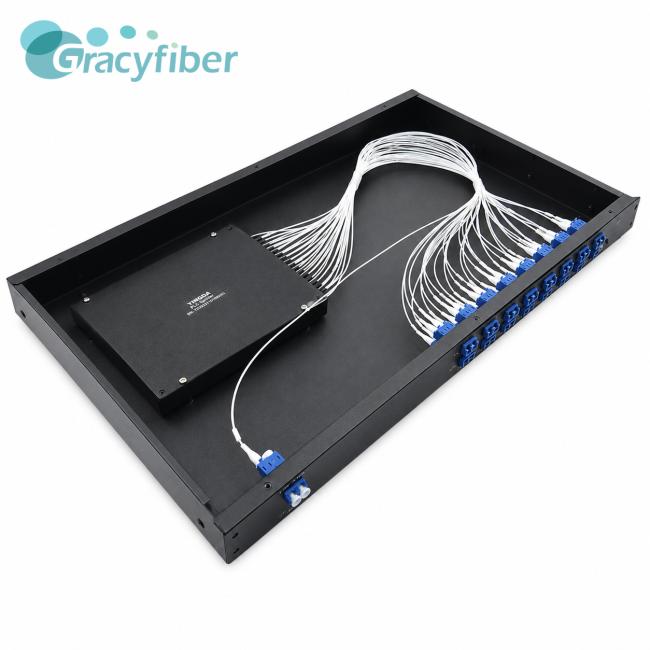

- Rack-Mounted Engineered Packaging: Utilizes a 19-inch 1U rack-mount package, measuring 484×250×44 mm; both COM and Port ends feature LC/UPC interfaces, using G657A1 fiber with 900 μm loose tubes, facilitating data center deployment and equipment integration.
3. Applications
- 800G-ZR High-Speed Coherent Optical Transmission System
- 150GHz DWDM Wavelength Division Multiplexing/Demultiplexing System
- Metropolitan Area Networks, Backbone Networks, and Long-Distance Optical Transmission Networks
- Data Center Interconnection and High-Capacity Link Expansion
- Optical Transmission Platform, Wavelength Division Equipment, and Rack-Mounted Subsystem Integration
- Multi-Wavelength Optical Signal Testing, Monitoring, and Laboratory Verification Platform
