C Band 32CH 150GHz AAWG Mux Demux Module 800G ZR Low Loss LC UPC for DWDM Optical Transmission System
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Product Description
C Band 32CH 150GHz AAWG Mux Demux Module 800G ZR Low Loss LC UPC for DWDM Optical Transmission System
1. Product Overview
The 150GHz AAWG Mux & Demux Module is designed for 800G-ZR high-speed optical transmission applications, covering the C14.5~C61 channel range, with an operating wavelength of approximately 1528.77~1565.9nm.
2. Core Product Features
| Parameters | Unit | Specification | ||||
|---|---|---|---|---|---|---|
| Min | Type | Max | ||||
| Channel Space | GHz | 150 | ||||
| Nos of Channel | CH | 32 | 40 | |||
| Channel Frequencies | THz | ITU Grid | ||||
| Available Channel Frequency Range | THz | 191.45 | - | 196.1 | ||
| Center Wavelength Accuracy | nm | -0.05 | - | +0.05 | ||
| GHz | -6.25 | - | -6.25 | |||
| PassBand @Center wavelength | nm | -0.10 | - | +0.10 | ||
| GHz | -12.5 | - | +-12.5 | |||
| Bandwidth | @-1.0dB | GHz | 115 | - | - | |
| @-3.0dB | GHz | 160 | - | - | ||
| @-20dB | GHz | - | - | 310 | ||
| Port Insertion Loss | dB | ≤5.3 | ||||
| Isolation | Adjacent | dB | ≥15 | |||
| Non-adjacent | dB | ≥28 | ||||
| Insertion Loss Uniformity at ITU | dB | ≤1.2 | ||||
- 150GHz channel spacing, supporting 800G-ZR system applications
- Covering C14.5~C61, 32CH port design
- Operating frequency range 191.45~196.1THz
- Insertion loss IL≤5.5dB
- Channel coherence ≤1.5dB, Ripple ≤0.6dB
- PDL≤0.5dB, Return loss ≥40dB
- COM and Port ends are both LC/UPC interfaces

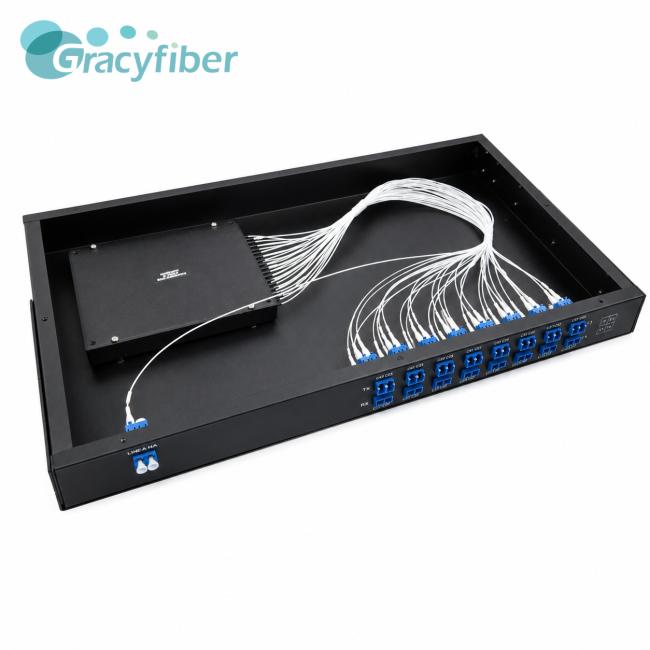

- 19-inch 1U rackmount package, dimensions 484×250×44mm
3. Application Scope
- 800G-ZR coherent optical transmission system
- DWDM dense wavelength division multiplexing/demultiplexing system
- Data center interconnect (DCI)
- Metropolitan area network and backbone optical transmission
- High-capacity multi-wavelength optical communication network
- Optical transmission equipment and wavelength division multiplexing system integration
- Long-distance high-speed optical network expansion system
