Euro 3 HOWO 6x4 10m3 371hp Cement Mixer Truck Sinotruk Used
Sinotruk Used Euro 3 HOWO 6x4 10m3 371hp Cement Mixer Truck
The used mixer trucks we sell can be customized according to customer requirements.For example, colors, tires, batteries, cab, fuel tank,We have 10 rounds and 12 rounds, 8m3, 10m3, 12m3, 14m3, different capacities for your choice.welcome to contact us get good price and High quality mixer truck.
Specification
| Concrete mixing capacity | 8cbm | 10cbm | 12cbm | 14cbm | |

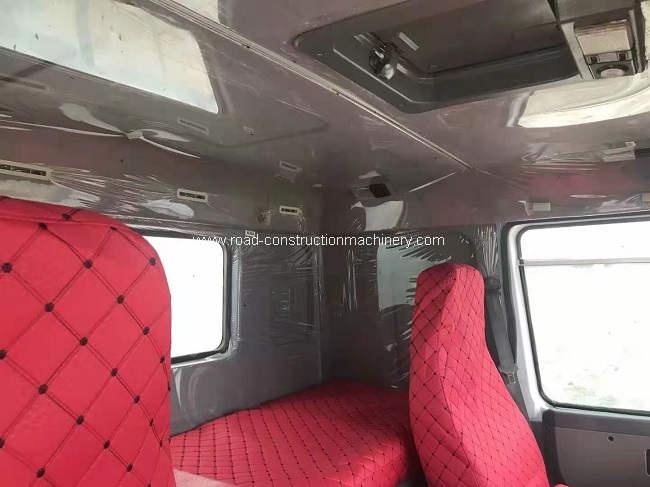

| Cabin | HW76, with 1 sleeper & A/C | ||||
Vehicle Main Dimension | 9400x2500x3920 | 9600x2500x3950 | 9850x2525x3950 | 10500×2496×3980 | |
| Wheel base (mm) | 3625+1350 | 3825+1350 | 4025+1350 | 1800+3200+1350 | |
Wheel track (front/rear) (mm) | 1500/2725 | 1500/2365 | 1550/2915 | 1500/2380 | |
| Approach / Departure angle(°) | 16/15 | 19/22 | 25/13 | 16/19 | |
| Tare Weight | 13700 | 14500 | 15300 | 16500 | |
| Loading Capacity | 27300 | 26500 | 25700 | 33500 | |
| Front axles | HF9 1x9000 | HF9 2x9000 | |||
| Rear axles | HC16 2x16000 | ||||

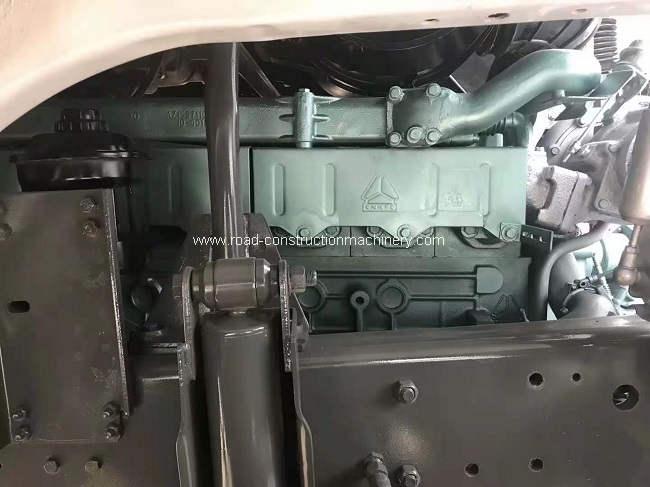

| Engine | Brand | WEICHAI | |||
| Model | WD615.47 | ||||
| Type | 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo- charging and inter-cooling | ||||
Horse Power | 371hp | ||||
Emission | Euro II | ||||
| Gearbox | HW19710 , 10 forwards & 2 reverse | ||||
| Clutch | Reinforced diaphragm clutch, diameter 430mm | ||||
| Steering Gear | ZF 8118,power steering, hydraulic steering with power assistance | ||||
| Fuel tank (L) | 300 | ||||
| Tire | 12R22.5 tubeless tire , 10 pieces with one spare total 11 pieces. | ||||
| Brakes | Service brake: dual circuit compressed air brakeParking brake :(emergency brake): spring energy, compressed air operating on rear wheels | ||||
| Mixing tank material | Q345 | ||||
| Thickness for end plate | 8mm | ||||
| Thickness for mixer body | 6mm | ||||
| Feeding Speed (m3) | ≥3 | ||||
| Discharging Speed (≥m3) | ≥2 | ||||
| Leftover Rate | Nearly Zero | ||||
| Max Rotating Speed (r/min) | 14---16 | ||||
| Driving System | Speed Reducer | Italy brand PMP | |||
| Hydraulic Pump | Italy brand PMP | ||||
| Hydraulic Motor | Italy brand PMP | ||||
| Water Tank Capacity (L) | 400 | ||||
