20CBM HOWO 6✖4 10 Wheels 30T Brand New Dump Truck For Stone And Sand
20CBM HOWO 6x4 10 Wheels 30T Brand New Dump Truck For Stone And Sand
Value: It’s used to carry very heavy loads and then dump them. It can carry anything from giant rocks to large amounts of sand or dirt . It is good for cleaning up a construction site or moving materials.
Advantages
Technical Specification
| Model | ZZ3257N3847A | ||
| Cabin | HW76(1 sleeper, air condition) | ||
|
Engine (Steyr technology, made in China)
|
Model | WP12.400E201, 400hp | |
| Fuel type | Diesel | ||
|
Displacement (L) Power(kW) |
11.596 294 |
||
|
Transmission |
HW19710,10 forwards & 2 reverses |
||
| Front axle | VGD95 | ||
| Rear axle | HC16 | ||
|
Steering |
ZF8118 | ||
| Tyre | 12R24 | ||
| Fuel tanker capacity (L) | 300 | ||
| Overall dimensions (L×W ×H) | 8545mm×2550mm×3400mm | ||
| Bucket |
5600mm×2300mm×1500mm Floor 8mm, Side 6mm, middle lifting |
||
| Approaching angle/Departure angle(°) | 19/23 | ||
| Overhang(front/rear) (mm) | 1500/1870 | ||
| Wheel base (mm) | 3825+1350 | ||
| Max speed(km/h)(km/h) | 75 | ||
| Curb weight(kg) | 12460 | ||
| Total Weight(kg) | 25000 | ||
|
Brake system
|
Service brake | Dual circuit compressed air brake | |
| Parking brake | spring energy, compressed air operating on rear wheels | ||
|
Electrical system
|
Battery | 2x12V/165Ah | |
| Alternator | 28V-1500W | ||
| Starter | 7.5Kw/24V | ||
| Other | Without ABS | ||
Detailed Picture of SINOTRUK HOWO Dump Truck

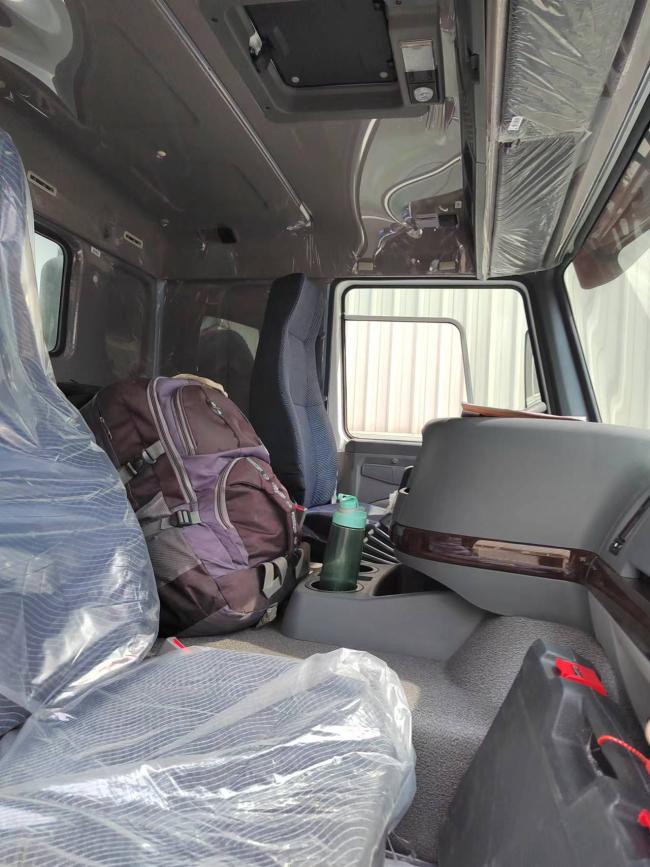

* Cabin: With heating and ventilating system, with one sleeper and two seats, 2-arm windscreen wiper system with three speeds, damped adjustable driver’s seat, exterior sun visor, safety belts, adjustable steering wheel, air conditioner, with transverse stabilizer, with 4-point support fully floating suspension and shock absorber.
* Engine: WP12.430E201 400 horse power
Radial Tyres 12R24 for African Rough Road
