10 Ton Howo 4x2 Heavy Duty Cargo Truck Mounted Telescopic Crane
10 Ton Howo 4x2 Heavy Duty Cargo Truck Mounted Telescopic Crane
Brand: Howo; Application: Truck;
ABS control system: without ABS;
Bumper: high bumper (all metal);
Gearbox: HW19710 gearbox + HW70 flange type power take-off;
Frame: double-layer frame (8+5/300);

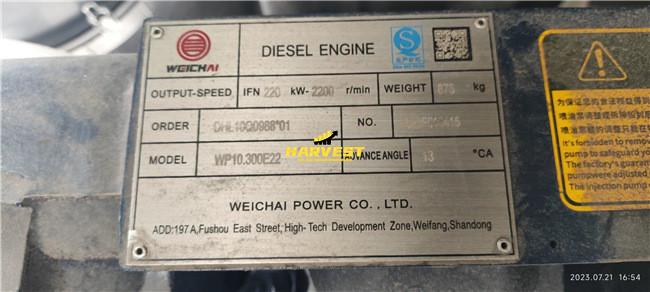

Engine: WP10.300E22 engine;
Steering machine: Bosch steering machine;

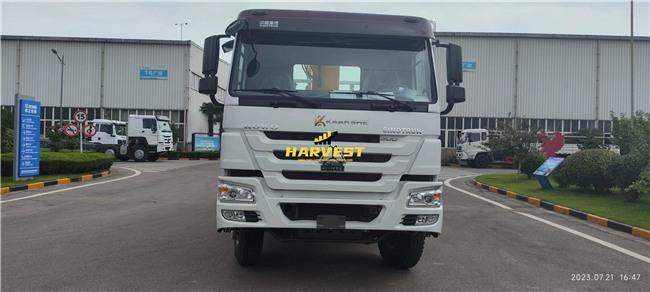

Cab: HW76 new front cab;
Exhaust system: standard version exhaust system;
Front axle: VGD71 front axle (drum);
Drive axle: ST16 manual adjustable arm single rear axle (drum); speed ratio: 4.8
Optional fuel tank: 400L fuel tank;
Tires: 295/80R22.5 tires;
Suspension: front and rear standard multi-leaf springs (10/9+6);
Intercooler protection device; start-stop switch under the car; reversing buzzer; fire extinguisher; rear tow hook;

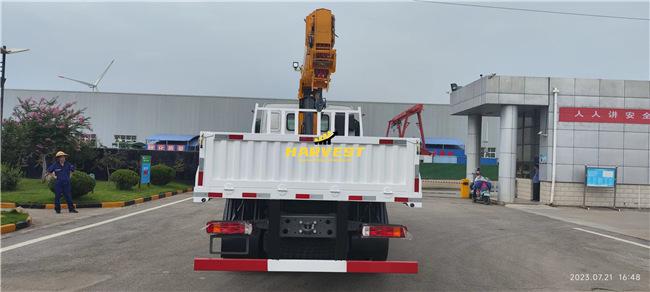

Bodywork: Crane: SQ10SK3Q 10-ton Straight Arm Crane
Carriage: 5000*2300*600, bottom 3 sides 1.5, corrugated board
Howo 4x2 10 Ton Light Cargo Truck Mounted 4 ton 2-section Telescopic Crane
Crane Parameter of SQ10SK3Q
| Model | SQ10SK3Q | Unit |
|---|---|---|
| Max Lifting Capacity | 10000 | kg |
| Max Lifting Moment | 25 | T.M |
| Recommend Power | 30 | kw |
| Max Oil Flow of Hydraulic System | 63 | L/min |
| Max Pressure of Hydraulic System | 26 | MPa |
| Oil Tank Capacity | 160 | L |
| Rotation Angle | All Rotation | |
| Crane Weight | 3765 | kg |
| Installation Space | 1150 | mm |
| Working radius (m) | 4.85 | 7.35 | 9.35 | |
|---|---|---|---|---|
| Lifting capacity (kg) | 10000 | 6960 | 5990 | |

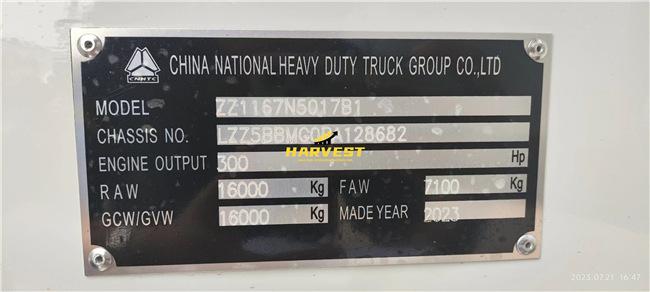

| Chassis Model | ZZ1167N5017B1 | ||
| Dimension(Lx W xH)(unloaded)(mm) | 9070×2530×3760mm | ||
| Cargo body size (LxWxH) (mm) | 5000*2300*600mm | ||
| Thickness | bottom 3mm, side 1.5mm | ||
| Wheel base (mm) | 5000 | ||
| Max speed(km/h) | 95 | ||
| Curb weight(kg) | 5830 | ||
Engine | Fuel type | Diesel | |
| Model | WP10.300E22 | ||
| Power, max(kw/rpm) | 300hp | ||
| Emission | Euro 2 | ||
| Transmission | Model | HW19710, 10 forward & 2 reverse | |
| Front axle | VGD71, 7 ton | ||
| Rear axle | ST16, 16 ton | ||
| Tire | 12R20, 6pcs + 1 spare tire | ||
| Cabin | HW76 | ||
| Oil Tank | 400L | ||
