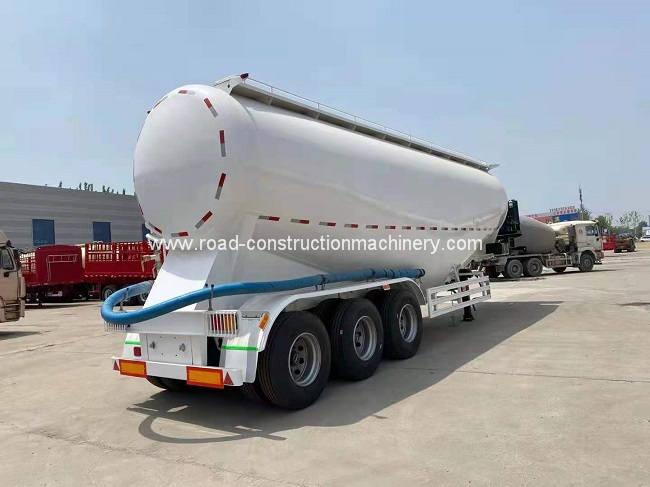

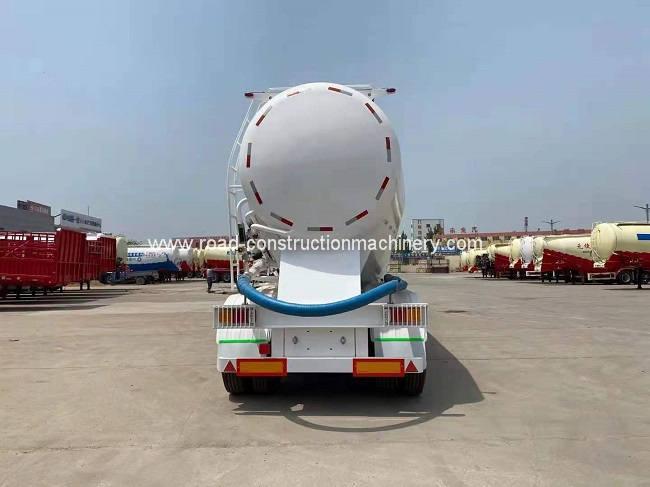

50 Tons Powder Tanker Truck Semi Trailer Mechanical Suspension

Price Negotiable

Price: Negotiable

MOQ: 1 unit

Delivery Time: 15 days

Brand: HARVEST

Product Description

30/35/40/45/50/60 cbm 3 Axle bulk cement tanker transport trailer/Powder Tanker Truck Semi Trailer

Our cement bulk tank trucks are exported to all over the world to gain the support and trust of customers. All specifications and designs of the trailers can be customized according to customer requirements, and we can provide you with technical drawings. Quality first, honesty! Please contact me for details.

Bulk Cement Transport Powder Tanker Truck Semi Trailer Product Description

BULK CEMENT SEMI TRAILER
Tare weight	11000KG
Size	According to your request
Color	Customized
Volume	25m³-115m³
Tank body	Q235A/Q345 3.5mm-5mm steel sheet V type
End plate	Q235A/Q345 6mm ball shape
Axle	2/3/4 axle FUWA/BPW/HJ brand optional 13T-16T
Tire	11.00R20/12.00R20/11R22.5/12R22.5 Tire optional
Wheel rim	8.5-20/9.0-20/8.25-22.5/9.0-22.5/9.75 optional
Wheelbase	6380+1310+1310
Suspension	Mechanical suspension
Leaf spring	10pcs9013mm
ABS	4S/2M KEMI Brand
Manhole cover	500mm manhole cover 2 sets
Discharge valve	4’’ discharge value
Discharge pipe	4’’ seamless steel tube
Air compressor	37KW, 0.2Mpa, 1000r/Min
Engine	Diesel engine WEICHAI brand 4102 Diesel engine
Kingpin	JOST 2”/3.5” bolt-in king pin
Landing gear	JOST two speed landing gear 28T
Compartment	1/2/3
Air-charging system	2’’ main hole, 2’’ check value, 1.5’’ safe value, 0.4Mpa gauge
Quadratic blow	1’’ diameter check value
Painting	Complete chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Accessories	One standard tool box, one spare tire carrier, one crank, one shaft head wrench, four side lights, two rear lights
