80ton 3 Axle Flatbed Semi Truck Trailer For Cargo Transport
Price:
Negotiable
MOQ:
1 unit
Delivery Time:
15 days
Brand:
Harvest
Product Description

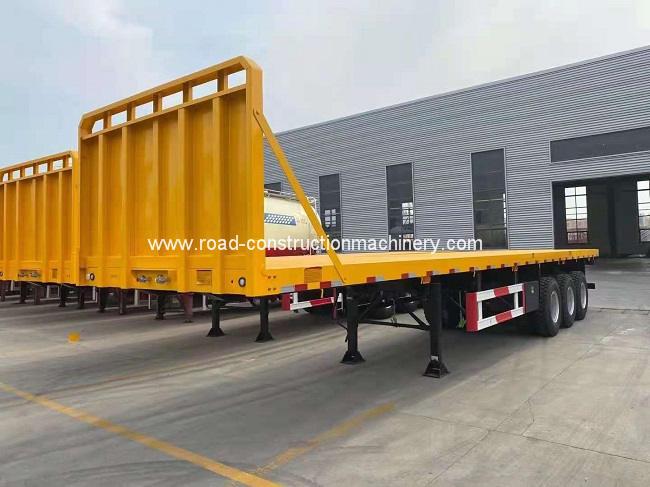

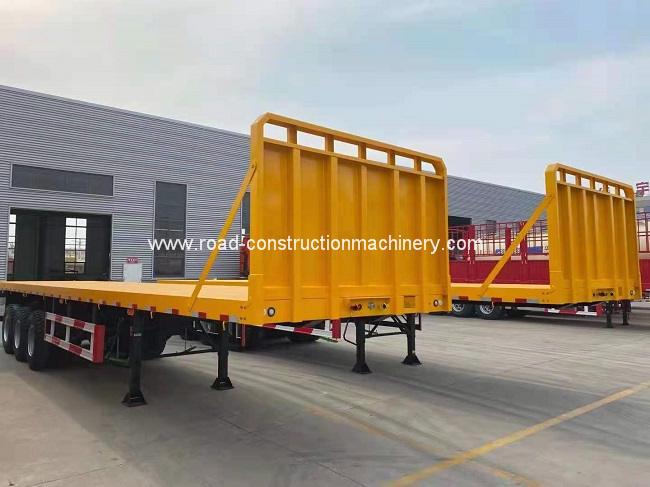

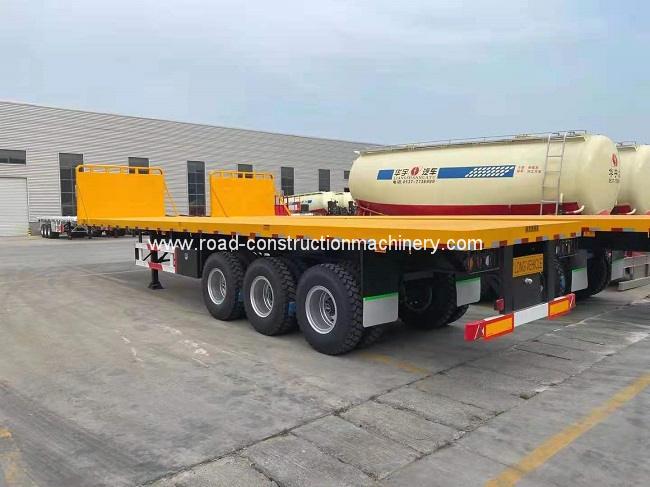

80 Ton 3 axle Flatbed semi trailer truck trailer for cargo transport
| Flatbed semi trailer Product Description | ||||||
| External Dimension | 12600mm×2500mm×1550mm | |||||

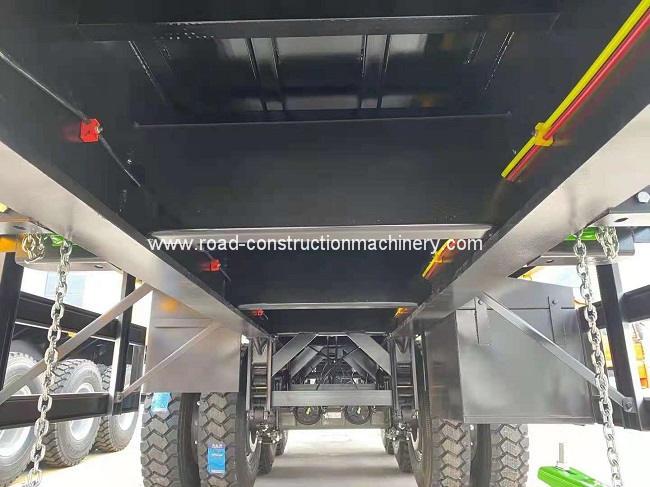

| Main Beam | Heavy duty and extra durability I beam; opting for high tensile steel Q345,welding by automatic submerged-arc processes; Top flange 14mm,width 140mm;middle flange 8mm; bottom flange 16mm,width 140mm | |||||
| Side Beam | 16# channel steel(U-steel) | |||||
| Floor | Checkered plate ,thickness 3mm,Q235 material | |||||
| Axle | Number | 3 | Brand | FUWA | Capacity | 13T |
| Suspension | Mechanical suspension | |||||
| Leaf Spring | 90*13*10Layer | |||||
| Tire | 315/80R22.5 | |||||
| Wheel rim | 9.0-22.5 steel wheel rim optional upon choice | |||||
| King pin | 2’/3.5’ bolt-in type | |||||
| Landing gear | Jost, two-speed | |||||
| Twist lock | 4/8/12,By your need | |||||
| Braking System | WABCO RE6 relay valve; T30/30 spring brake chamber ;40L air tanks | |||||
| Electrical System | Voltage 24V, receptacle 7 ways (7 wire hamess); LED light, one set 6-core standard cable. | |||||
| Painting | Complete chassis sand blasting to clean rust ,1 coat of anticorrosive prime,2 coats of final paint | |||||
| Accessories |
One standard tool box; one spare wheel carrier |
|||||
