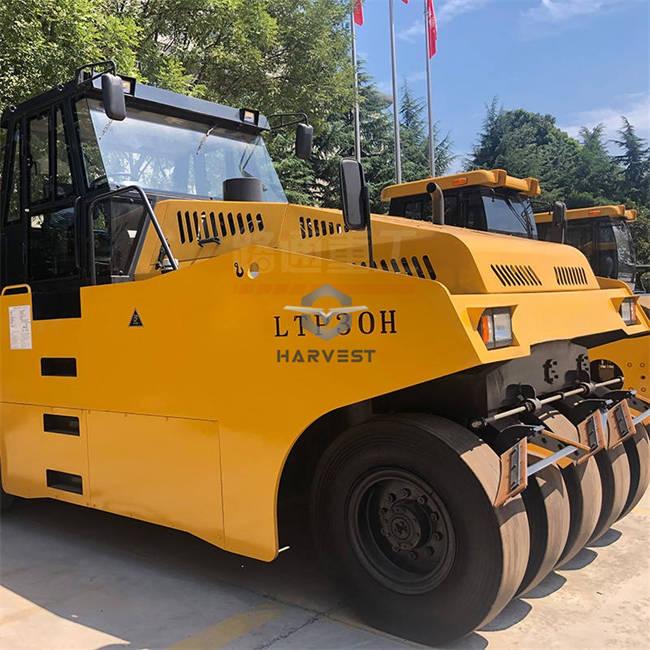

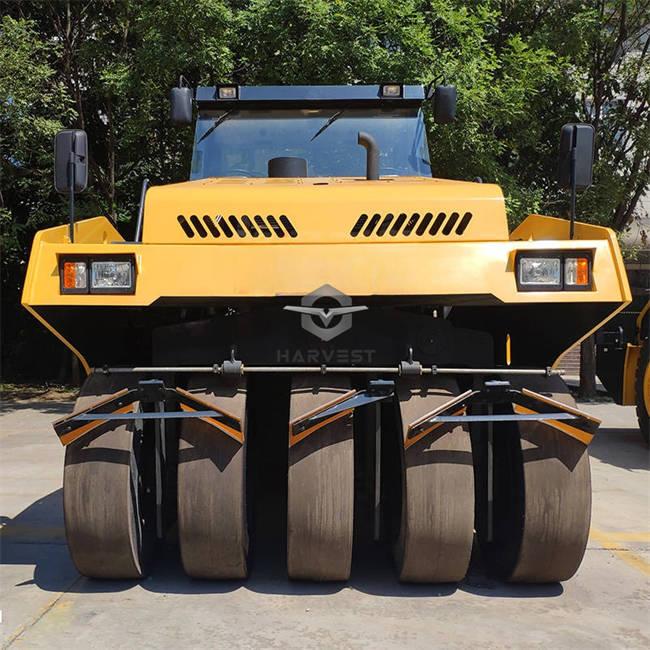

30 Ton Fully Hydraulic Pneumatic Tire/Tyre Roller lTP30H
Price:
Negotiable
MOQ:
1 unit
Delivery Time:
10-15 working days
Product Description
Pneumatic tyre roller series are designed for the compact
cohesive and non-cohesive materials,such as asphalt concrete,
cement or lime stabilized soils, gravels,sands and clay mixtures,
Rolling Cement Concrete(PCC)in the construction projects,
especially suitable for the preparation of the upper courses of
high grade highway.
LTP20H LTP26H LTP30H fully hydraulic Pneumatic tire/tyre roller
| MODEL | LTP20H | LTP26H | LTP30H | |
| Operating mass | kg | 20000 | 26000 | 30000 |
| Ground pressure | Kpa | 200-350 | 250-420 | 250-460 |
| Travel speed | Km/h | 0-5/0-10 | 0-5/0-10 | 0-5/0-10 |
| Tyre quantity | (front+back) | 5+6 | 5+6 | 5+6 |
| Min.turning radius | mm | 8000 | 8000 | 8000 |
| Compaction width | mm | 2850 | 2850 | 2850 |
| Grade ability | % | 20 | 20 | 20 |
| Tyre overlap | mm | 50 | 50 | 50 |
| Overall dimension | mm | 5150*2850*3400 | 5150*2850*3400 | 5150*2850*3400 |
| Wheelbase | mm | |||
| Diesel power | KW | 140 | 140 | 140 |
| Diesel model | WP6G190 | WP6G190 | WP6G190 |
