QCW 1500 Hanniu Laser Welding Machine For Thin Plate Metal Materials SS CS Aluminum
Laser welding, occurs when the laser is used as an intense energy source to selectively heat materials to a point between their melting and vaporizing temperature.
Once molten, the materials are allowed to alloy and then re-solidify in a controlled atmosphere. The result is a reliable, oxide-free weldment.
By adjusting various parameters such as the laser energy and focal point position, one can create weld ratio ranging from wide and shallow to narrow and deep. In most cases the welded part geometry dictates this ratio.
Laser welding offers a variety of benefits over other types of welding: deep penetration of precise narrow welds, small heat affected zone, low heat input, fast weld times, minimum part distortion, no secondary processing and high repeatability.
| Model | QCW-S-750 |
|---|---|
| Laser power | 750W |
| Cooling method | Air-cooling |
| Laser medium | Nd:FIBER |
| Laser wavelength | 1064nm |
| Welding minimum molten pool | 0.1mm |
| Welding depth | 1mm |
| Pulse width | 0.1-20ms(continuously adjustable) |
| Pulse rate | 1-200Hz (continuously adjustable) |
| Viewing system | red light positioning |
| Power | ≤5KW |
| Power source | 220V/50Hz/40A |
| Table format | 641*316*543mm |
This is only for your reference. Speed may be different as for different figures. It should be based on practical test results of this laser welding machine.

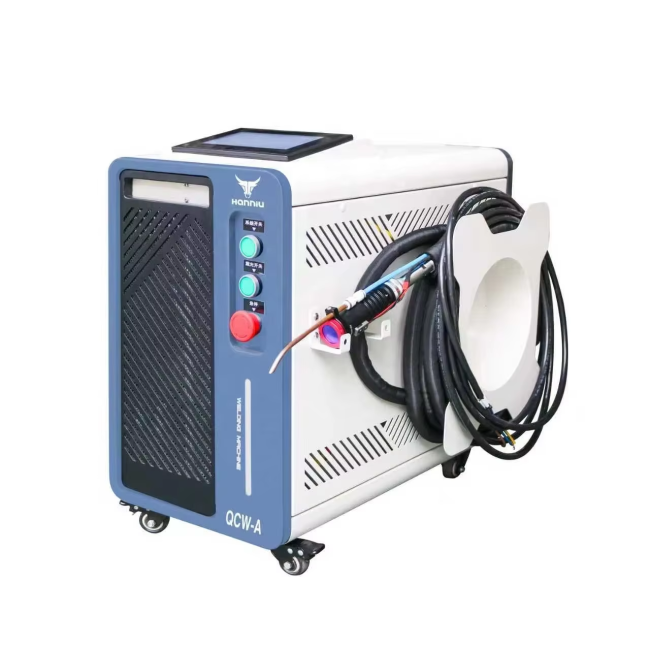

Detail pictures of laser welding machine

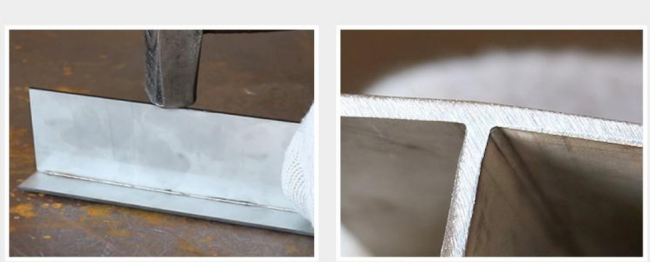

Samples of the laser welding machine
Suitable for welding thin plates; 3D work bench and the master unit are integrated; This machine can weld space curve, LED metal, all kinds of words. Applied in medical, electronics components, circuit boards, IC, battery, instrument, etc.
Suitable for welding kettle, vacuum cup, stainless steel bowl, sensor, tungsten wire, high power diode (triode), aluminum alloy, laptop shell, mobile phone battery, door handle, mould, electric apparatus fittings, filter, nozzle, stainless steel products, golf head, zinc alloy artworks. Weld point, straight line, circle, square or any plane graphs drawn by AUTOCAD; weld vertical track.
- 8 electricity capacitor. Strong power supply.
- Good light intensity.
- High voltage, very stable.
- High precision extended light path, CCD camera to help position.
- This laser welding machine warranty for one year. We will offer good parts for free if your parts are broken during warranty, which was not caused by artificial.
- Our technican can offer free training in our workshop.
- Our technican can go to your place and offering service if you want.
- We are no holiday and vacations for your after-sale problems.
- Standard plywood case, no need to steam, can export directly.
- Car-lift machine up and down loading. more safe for machine.
- When importing, the plywood case is with fumigation-free, the procedure is simple.
- Delivery Detail: within 3-5 days after received your payment.
