SK200 SK200LC Boom Arm Bucket Cylinder 2438U1109F1 2438U1103F1 Excavator Cylinder For Kobelco
SK200 SK200LC Boom Arm Bucket Cylinder 2438U1109F1 2438U1103F1 Excavator Cylinder For Kobelco
Product Description
Product Name | Hydarulic Boom Bucket Stick Cylinder |
Model | SK200 SK200LC |
| Compatible With Other Kobelco Models | SK200LC SK200 MD200C SK300LC-2 SK220LC SK220 SK300-2 SK300 SK210 CLAMSHELL SK210LC |
| Part Number Of SK140 Hydraulic Cylinder Bucket Cylinder | 2438U1109F1 2438U1103F1 2438U1109F2 |
Temperature Range | -20-80°C |
| Pressure Range | 21 MPa to 35 MPa |
| Dimensions | Customized |
OEM | Yes |
| Service Stage | Details |
| PreSales Service | Free consultation and technical advice |
| Customization options for dimensions and performance based on customer requirements | |
| InSales Service | Fast production and delivery times |
| Real-time updates on manufacturing and shipment status | |
| AfterSales Service | Warranty on manufacturing defects |
| Technical support for installation and maintenance |
ps.If you are looking for other hydraulic cylinders for the SK200, please contact us for a quote

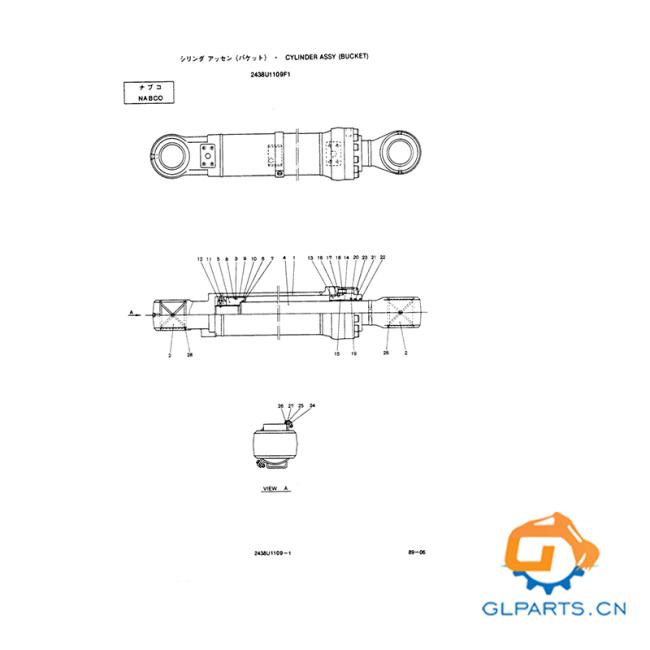

List Of Spare Parts
| Pos | Part No | Qty | Parts name | Comments |
| 2438U1109F1 | [1] | CYLINDER | KOB ASSY (BUCKET), Remarks: CONSISTS OF THE FOLLOWING PARTS | |
| 1 | 2438U1109S1 | [1] | BARREL | KOB TUBE, CYLINDER |
| 2 | 2438U1106S2 | [2] | BUSHING | KOB ID 79.29mm x OD 90.12mm x H 89.98mm |
| 3 | R45P0049D2 | [1] | SEAL | KOB |
| 4 | 2438U1109S4 | [1] | PISTON ROD | KOB ROD, PISTON |
| 5 | 2438U1109S5 | [1] | PISTON | KOB |
| 6 | ZD12G08000 | [1] | O-RING,79.40mm ID x 85.60mm OD x 3.10mm | KOB ID 79.40 ± 0.69 x OD 85mm |
| 7 | ZD75G08000 | [2] | BACK-UP RING | KOB RING, BACK UP |
| 8 | R45P0051D4 | [1] | O-RING | KOB |
| 9 | 2438U1109S9 | [2] | WEAR RING | KOB RING, WEAR |
| 10 | 2438U995S10 | [2] | WEAR RING | KOB RING, WEAR |
| 11 | 2438U995S11 | [1] | NUT | KOB PISTON |
| 12 | 2438U308S45 | [1] | LOCKING RING | KOB RING, LOCK |
| 13 | 2438U1109S13 | [1] | COVER | KOB ROD |
| 14 | 2438U1109S14 | [1] | BUSHING | KOB |
| 15 | 2438U718S22 | [1] | CLIP | KOB |
| 16 | ZD12G11500 | [1] | O-RING,114.40mm ID x 120.60mm OD x 3.10mm | KOB ID 114.40 ± 0.94 x OD 120mm |
| 17 | ZD75G11500 | [1] | BACK-UP RING | KOB RING, BACK UP |
| 18 | 2438U1106S21 | [1] | RING | KOB |
| 19 | R45P0050D9 | [1] | RUBBER SEAL | KOB SEAL, STEP |
| 20 | 45Z91D44 | [1] | O-RING | KOB |
| 21 | 2418U130D34 | [1] | PACKING | KOB SEAL Superseded by part number: Y0496604500 |
| 22 | 2438U928S33 | [1] | SEAL | KOB DUST |
| 23 | ZS23C14055 | [12] | SCREW,Hex Socket Head, M14 x 55mm | KOB M14x2.0x55mm |
| 24 | 2438U995S24 | [1] | U-BRACKET | KOB BRACKET |
| 25 | 2438U915S22 | [1] | BAND | KOB BRACKET |
| 26 | ZS16C10030 | [2] | CAPSCREW | KOB M10x1.50x30mm Superseded by part number: ZS18C10030 |
| 27 | ZW26X10000 | [2] | LOCK WASHER | KOB ID 10 x OD 18 x Th 2.5mm |
| 28 | 2438U1109S28 | [4] | SEAL | KOB DUST |
| 2438U1109R100 | [1] | REPAIR KIT | KOB Remarks: CONSISTS OF ITEM 3, 6~10 Superseded by part number: 2438U1109R100P | |
| 2438U1109R200 | [1] | REPAIR KIT | KOB Remarks: CONSISTS OF ITEM 16~22 Superseded by part number: 2438U1109R200P | |
| 2438U1109R300 | [1] | REPAIR KIT | KOB Remarks: CONSISTS OF ITEM 3, 6~10, 16~22 Superseded by part number: 2438U1109R300P |
* If you need other cylinder assemblies or cylinder spare parts, feel free to send us an inquiry, and we will respond to your request immediately
