512-2357 512-0983 E336 Excavator Hydraulic Boom Cylinder 5122357 5120983
512-2357 512-0983 E336 Excavator Hydraulic Boom Cylinder 5122357 5120983
| Model |
E336 336 CAT336 |
|
Part Number |
512-2357 512-0983 5122357 5120983 |
| Cylinder Type | Boom Hydraulic Cylinder |
| Packing | Wooden Case |
| Shipping Term | Within 5~7 days |
| Technique | Forging & Casting |

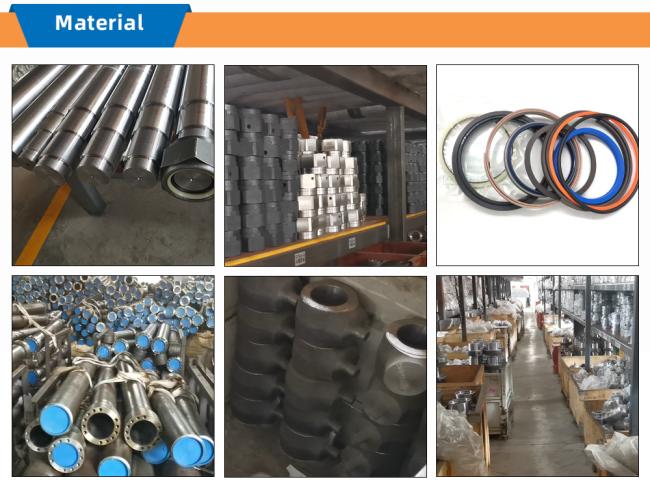

Material
Honed Tube:25Mn Steel
Piston Rod:45 Mn Steel
Nuts, Piston, Cylinder Head: High Strength Steel
Seal Kits:NOK and SKF
E336 Excavator Hydraulic Cylinder
STICK CYLINDER: 512-2361
BUCKET CYLINDER: 522-3895 512-2365
BOOM CYLINDER: 512-2357 512-0983
Application
The E336 hydraulic cylinder delivers reliable hydraulic performance for demanding excavating, loading, and clearing tasks.
It is widely used in:
1. Construction sites, for trenching, foundation work, and heavy lifting.
2. Mining operations, where strength and durability are critical for rock and ore handling.
3. Road and infrastructure projects, supporting grading, demolition, and pipe laying.
4. Material handling, enabling efficient loading and unloading of bulk materials.
5. Engineered for performance and endurance, the E336 cylinder ensures smooth operation even under harsh working conditions.
Spare Parts of 512-2357 Hydraulic Cylinder
| Pos. | Part No | Parts name | Pos. | Part No | Parts name |
| 1 | 7Y-4669 J | RING-BACKUP | 13 | 358-8523 | PISTON |
| 2 | 7Y-4672 | RING-RETAINING | 14 | 359-7191 | STOP |
| 3 | 7Y-4673 J | RING-BACKUP | 15 | 495-8212 J | SEAL AS |
| 4 | 7Y-5215 M | BOLT-SOCKET HEAD (M24X3X90-MM) | 16 | 518-6237 | HEAD |
| 5 | 095-1633 J | SEAL-O-RING | 17 | 518-6324 | ROD AS |
| 6 | 114-0760 | BUSHING | 17A. | 504-7629 | BEARING-SLEEVE |
| 7 | 165-9290 J | SEAL-LIP TYPE | 18 | 518-6326 | CYLINDER AS |
| 8 | 188-4217 J | RING | 18A. | 504-7634 | BEARING-SLEEVE |
| 9 | 188-4218 J | RING | 19 | 7Y-4695 M | LOCKNUT (M80X2-THD) |
| 10 | 242-6833 J | RING-SEAL | AVAILABLE REPAIR KIT(S): | ||
| 11 | 324-6438 J | SEAL-BUFFER | 518-5133 J | KIT-SEAL (BOOM CYLINDER) | |
| 12 | 324-6439 J | SEAL-U-CUP | J | KIT MARKED J SERVICES PART(S) MARKED J |
