Metal / Copper Worm Gear Motor 12v JGY370 DC Motor With Worm Gear 3kg.cm
JGY370 12V DC Motor With Worm Gear 3kg.cm

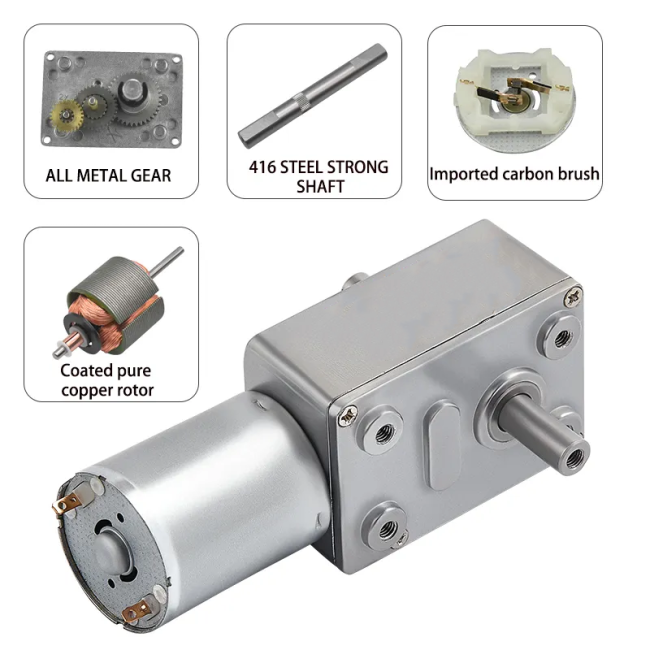

The JGY-370 DC with Worm Gear Motor is a compact and highly durable motor designed to deliver exceptional torque and reliability for a diverse range of uses. Its robust all-metal
gearing ensures resistance to heat and wear, making it suitable for both industrial and consumer applications. Featuring a steel D-shaped output shaft, the motor offers superior strength and resilience, while its self-locking mechanism provides stability by holding its position when power is cut.Among the motor's main benefits are its compact yet strong design, high torque with low noise levels, and self-locking capability. These characteristics, along with its accuracy and dependability, make the JGY-370 motor a popular part of a variety of applications, such as robotics, specialised equipment, home and office automation, and industrial automation. Its versatility and effective operation also fit well with the current motor technology trends towards energy efficiency and environmental sustainability.
JGY370 6V DC Motor With Worm Gear
| Reduction Ratio | Rated Voltage | No-Load | Rated | Maximum Torque | Stall Current | |||
| Speed | Current | Torque | Speed | Current | ||||
| V | rpm | mA | Kg.cm | rpm | A | Kg.cm | A | |
| 40 | 6 | 150 | ≤100 | 0.2 | 120 | ≤0.6 | 0.9 | 3.3 |
| 65 | 90 | ≤100 | 0.5 | 70 | ≤0.6 | 1.6 | 3.3 | |
| 150 |
40 |
≤100 | 2.0 | 30 | ≤0.6 | 7.5 | 3.3 | |
| 200 | 30 | ≤100 | 5.3 | 22 | ≤0.6 | 10 | 3.3 | |
| 260 | 23 | ≤100 | 6.7 | 18 | ≤0.6 | 13 | 3.3 | |
| 340 | 18 | ≤100 | 9.0 | 15 | ≤0.6 | 18 | 3.3 | |
| 600 | 10 | ≤100 | 15.9 | 7.5 | ≤0.6 | 30 | 3.3 | |
| 1000 | 6 | ≤100 | 26.5 | 4 | ≤0.6 | 45 | 3.3 | |
JGY370 12V DC Motor With Worm Gear
| Reduction Ratio | Rated Voltage | No-Load | Rated | Maximum Torque | Stall Current | |||
| Speed | Current | Torque | Speed | Current | ||||
| V | rpm | mA | Kg.cm | rpm | A | Kg.cm | A | |
| 40 | 6 | 150 | ≤60 | 0.2 | 120 | ≤0.6 | 0.9 | 1.7 |
| 65 | 90 | ≤60 | 0.5 | 70 | ≤0.6 | 1.6 | 1.7 | |
| 150 |
40 |
≤60 | 2.0 | 30 | ≤0.6 | 7.5 | 1.7 | |
| 200 | 30 | ≤60 | 5.3 | 22 | ≤0.6 | 10 | 1.7 | |
| 260 | 23 | ≤60 | 6.7 | 18 | ≤0.6 | 13 | 1.7 | |
| 340 | 18 | ≤60 | 9.0 | 15 | ≤0.6 | 18 | 1.7 | |
| 600 | 10 | ≤60 | 15.9 | 7.5 | ≤0.6 | 30 | 1.7 | |
| 1000 | 6 | ≤60 | 26.5 | 4 | ≤0.6 | 45 | 1.7 | |
JGY370 24V DC Motor With Worm Gear
| Reduction Ratio | Rated Voltage | No-Load | Rated | Maximum Torque | Stall Current | |||
| Speed | Current | Torque | Speed | Current | ||||
| V | rpm | mA | Kg.cm | rpm | A | Kg.cm | A | |
| 40 | 24 | 150 | ≤40 | 0.2 | 120 | ≤0.6 | 0.9 | 0.85 |
| 65 | 90 | ≤40 | 0.5 | 70 | ≤0.6 | 1.6 | 0.85 | |
| 150 |
40 |
≤40 | 2.0 | 30 | ≤0.6 | 7.5 | 0.85 | |
| 200 | 30 | ≤40 | 5.3 | 22 | ≤0.6 | 10 | 0.85 | |
| 260 | 23 | ≤40 | 6.7 | 18 | ≤0.6 | 13 | 0.85 | |
| 340 | 18 | ≤40 | 9.0 | 15 | ≤0.6 | 18 | 0.85 | |
| 600 | 10 | ≤40 | 15.9 | 7.5 | ≤0.6 | 30 | 0.85 | |
| 1000 | 6 | ≤40 | 26.5 | 4 | ≤0.6 | 45 | 0.85 | |
The main body is 76.8 x 32 x 25 mm (LW*H), while the gear box measures 46 x 32 x 25 mm (LWT) and the motor body measures 30.8 x 24.4 mm (LMax.D). With two motor pins and a net weight of 162g, it is a small and effective option for a variety of applications. A noteworthy variation of the JGY-370 is the 12V 3rpm model, which has a rated speed of 2rpm, a rated torque of 25kg.cm, a rated current of 0.6A, a no-load speed of 3rpm, and a no-load current of 60MA. This particular model highlights the motor's capacity to produce great torque at low speeds, making it perfect for applications that call for precise and controlled movement of heavy loads.
Features and Benefits
-
Durable Construction
-
Built with metal gears for enhanced resistance to abrasion and heat, ensuring long-term use in heavy-duty scenarios.
-
The high-strength shaft enhances impact resistance for demanding environments.
-
-
Customizable Electrical Options
-
Operates on 6V, 12V, or 24V power supplies, with speed settings ranging from 2 RPM to 150 RPM, making it adaptable for various needs.
-
Improved torque control in brushless models provides smooth, efficient performance, especially in applications requiring precision.
-
-
Quiet and Efficient Operation
-
Designed for low-noise operation, the motor is compact yet powerful, combining high torque output with minimal power consumption.
-
