K20 Mini Electric Motor High Speed 3.0V-3.5V Brushed DC Motor
Mini K20 Electric Motor High Speed 3.0v -3.5v CE RoHs
Mini K20 Electric Motor is a brushed DC motor, 6mm*8mm*14.4mm precise motor body size. The FF-K20 motor is suitable for precision products: portable CD player, car CD player, DVD drive, adult machines, and cameras.
Permanent Magnet Construction: The FF-K20's permanent magnet construction offers constant and dependable performance in dual-tron small motor applications.
Compact Design: This little electric motor, measuring just 8mm*6mm*14.5mm, is suitable for space-saving applications in household appliances.
High Speed Range: Achieve quick motion with a speed range of 12500 RPM to 30000 RPM, ideal for DIY solar-powered toys and cameras.
Lightweight Construction: Weighing only 3g, this little v twin engine for sale is easy to integrate into lightweight projects without adding bulk.
Versatile voltage compatibility: It operates efficiently between DC 1.5V and 3.5V, making it an ideal solution for a variety of micro electric conversions.

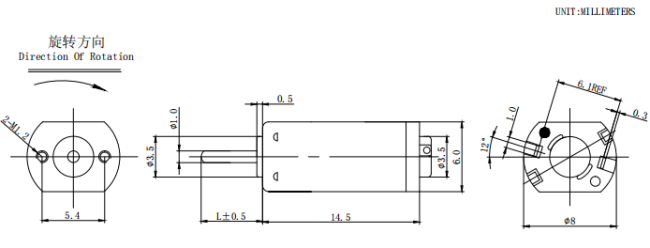

Mini K20 Electric Motor High Speed Parameter Datasheet Samples & 2D Drawing
| Model | Voltage(V) | No Load | Rated Load | Stall | ||||||
| Range | Rated | Speed | Current | Torque | Speed | Current | Output | Torque | Current | |
| R/min | A | mNm | R/min | A | W | g.cm | A | |||
| FF-K20-06205 | 3.5max | 3.0v | 11800 | 0.040 | 0.147 | 5800 | 0.10 | 0.07 | 2.8 | 0.16 |
| FF-K20-07130 | 3.5max | 3.5v | 8200 | 0.060 | 0.049 | 2200 | 0.16 | 0.049 | 1.8 | 0.20 |
|
Customized product parameter are available upon your request Note:1mNm= 1Ncm = 10.2gcm |
||||||||||
Note:
The above datasheet is based on different customer's requirements; voltage, speed, current, torque, speed, and output can be customised.
