RF-370CA Brushed DC Electric Motor 3V 6V 12V Mini 24mm Diameter For Air Pump
RF-370CA Brushed dc Electric Motor 3V 6V 12V Mini 24mm Diameter For Air Pump CE
RF-370CA Features:
- Product Name: RF-370 Brushed DC Electric Motor
- Nominal Volt:6.0V /12V
- No-load Speed: 3000 RPM/6000RPM/8200RPM or custom as you need
- Motor Diameter: 24.4mm Max
- Motor Body Length:30.8mm
- Motor Shaft Diameter:2mm
- Out Shaft Length:6.5±0.2mmor Custom as your need
- Stall Torque:130g.cm/180g.cm
- Weight: 48g
- Features:
- RF-370 Brushed DC Motor
- RF-370 Metal Brushed DC Motor
- RF-370 Brushed Magnet Motor
24.4mm*30.8mm RF-370CA Volt DC Motor High Torque Technical Parameters:
| Model | Voltage(V) | No Load | Rated Load | Stall | ||||||
| Range | Rated | Speed | Current | Torque | Speed | Current | Output | Torque | Current | |
| R/min | A | m.Nm | R/min | A | W | g.cm | A | |||
| RF-370CA-22170 | 3-6V | 6.0V | 6000 | 0.041 | 2.37 | 5263 | 0.273 | 1.18 | 186 | 1.82 |
| RF-370CA-12560 | 8-12V | 12.0V | 3700 | 0.012 | 1.96 | 3030 | 0.066 | 0.60 | 130 | 0.37 |
| RF-370CA-15370 | 8-12V | 12.0V | 5600 | 0.020 | 2.14 | 4876 | 0.123 | 1.03 | 176 | 0.85 |
|
Customized product parameter are available upon your request Note:1mNm= 1Ncm = 10.2gcm |
||||||||||
1.Motor Body Length:30.6mm
2.Motor Output Shaft Length:L±0.5mm
3.Motor Output Shaft Diameter:2mm
4.Motor Diameter:24.4mm Max
5.Fixed Aperture:2.5mm
6.Step Height: about 1.5mm
7.Step diameter: about 6.4mm
8.Distance between two fixed aperture:18.3mm

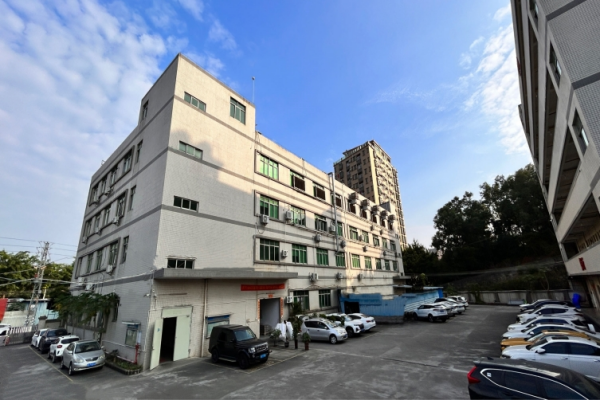

Company Introduction – Lihua Motor /HCS Motors:
Lihua Motor is a globally recognized leader in the design, development, and manufacturing of high-performance DC motors. With over 21 years of expertise in precision engineering, we specialize in delivering innovative motor solutions for industries ranging from consumer electronics and robotics to automotive and renewable energy. Our commitment to quality, technological advancement, and customer-centric service has solidified our reputation as a trusted partner for businesses worldwide.
Core Values
Quality Excellence: Every product undergoes rigorous testing to meet international standards.
Innovation-Driven: Continuous R&D investment ensures cutting-edge motor technology.
Sustainability: Eco-friendly practices integrated into production and operations.
Customer Focus: Tailored solutions and responsive support for diverse needs.

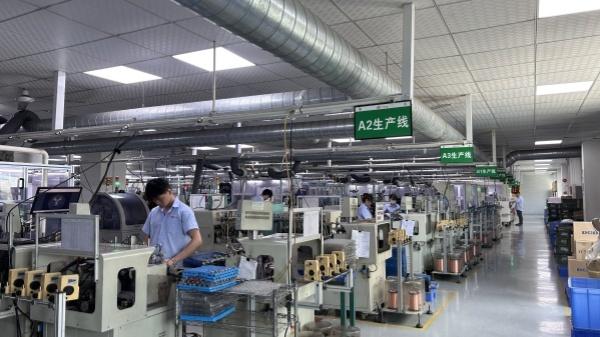

RF-370 Series Motor Production Line Introduction:
The RF-370 series motor stands as our flagship product, renowned for its reliability, efficiency, and adaptability across applications such as home appliances, medical devices, and industrial automation.
Production Line Overview
State-of-the-Art Facilities:
We operate 3 fully integrated production lines dedicated to the RF-370 series, equipped with automated assembly systems and AI-powered quality inspection tools.
Advanced machinery is regularly upgraded to enhance precision and reduce production cycle times.
Unmatched Capacity & Efficiency:
Daily Output: 30,000 units, ensuring swift order fulfillment for both small and bulk requirements.
Quality Compliance Rate: 99.9%, achieved through real-time monitoring and multi-stage testing protocols.
Optimized Manufacturing Process:
Material Sourcing: Premium-grade components from certified suppliers.
Automated Assembly: Robotic systems ensure consistency in rotor alignment, coil winding, and gear integration.
Quality Control:
In-line optical sensors detect microscopic defects.
Final-stage load testing simulates real-world operating conditions.
Traceability: Each motor is tagged with a unique QR code for full production history tracking.
Sustainability Practices:
Energy-efficient machinery reduces carbon footprint.
Waste recycling programs minimize environmental impact.
