130 Metal Gear Motor DC6V 12V 24V Low Speed High Torque Reducer For Storage Box

The 130 Micro Geared Motor is a compact and efficient drive solution, consisting of a 130 motor paired with a precision gear reduction box with a diameter of 20mm. The gearbox offers a variety of reduction ratio options, including 29:1, 31:1, 78:1, 195:1, and 488:1, and can be customized to meet specific customer requirements for speed and torque. The gearbox is available in standard lengths of 15.9mm, 17.4mm, 18.9mm, and 20.4mm, providing flexibility for integration into different designs and applications.

This motor is designed to deliver low-speed operation with high torque output, making it ideal for applications that require precise motion control and reliable performance. Its compact size and customizable features make it suitable for a wide range of uses, including smart home devices, medical equipment, industrial automation, robotics, and consumer electronics. Whether for small-scale projects or industrial-grade systems, the 130 Micro Geared Motor offers a versatile and efficient solution for high-torque, low-speed drive needs.

Model : GA20-130  micro metal gearmotor

Gearbox: 20 mm metal spur gear reducer

Motor Size:20mm*L (Motor Length can be custom )

Shaft : Φ4mm D-cut 0.5mm, M4, custom

Gear Box Size:12mm*H mm
Shaft size : Approx. 4 x L mm (Dia.*L)
Nominal Voltage : DC 3V 6V 12V

Operating Voltage:3V-9V 18V-26V
Revolving speed:
15 RPM / 50 RPM / 75 RPM / 100 RPM / 125 RPM / 150 RPM / 200 RPM / 250 RPM / 500 RPM
3V : 25 RPM / 1000 RPM
6V : 30 RPM / 400 RPM / 1000 RPM / 2000 RPM
12V : 60 RPM / 300 RPM / 400 RPM / 800 RPM / 1000 RPM / 2000 RPM / 4000 RPM

Encoder : Magnetic encoder available;
Commutation: Carbon brush/Graphite brush/Metal brush;
Construction: micro Permanent Magnet iron cored dc electric motor;

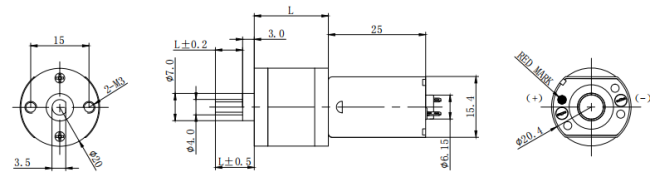

3V–26V Mini 130 Motor Gearbox DC Electric Lock Parameter List & Dimensions

Model: GA20-130,6V 12V DC Gear Motor Paramter List

Note: all reduced no-load speeds have a tolerance of ±15%.

20A 130 Metal Gear Motor DC 12V Low Speed High Torque Long Shaft/D-Shaft 13800 RPM Gear Motor 1:152 Reduction Ratio

Specifications:

• Rated Voltage: DC 12V

• No-load Current: Approximately 92 mA (measured)

• No-load Speed: Approximately 86 rpm (measured)

• Reduction Ratio: 1:152

• Rated Torque: 1500 gf.cm

• Stalling Torque: 9329 gf.cm

• Direction: The red dot on the motor's rear cover indicates the positive terminal. Connecting the power supply accordingly results in clockwise rotation; reversing the connection produces counterclockwise rotation.

Features:

• Compact size

• High performance

• Wear-resistant design

• High torque output

Applications:

• Smart cars

• Tape cutting machines

• Early education devices

• Robot wheels

• Curling iron motors

• And more

Working Voltage Range: DC 3-12V

• At DC 3V: No-load current is approximately 65 mA, and no-load speed is around 20 rpm.

• At DC 6V: No-load current is approximately 75 mA, and no-load speed is around 42 rpm.

Internal Structure:
The motor features a fully metal gearbox with precisely driven gear sets, ensuring durability and efficient power transmission. The main motor is a 130-type iron rear cover motor with a robust carbon brush structure, designed for long-lasting performance.

Performance Characteristics:
When powered off, the shaft cannot be manually turned, demonstrating the motor's high torque capability. When powered on, the motor delivers strong and reliable performance, making it an ideal choice for low-speed, high-torque applications.

This motor is a versatile and reliable solution for applications requiring precise control, durability, and high torque output. Its compact design and wide voltage range make it suitable for a variety of industrial, educational, and consumer electronics applications.
