RE-140 1.5V 3V Small Hobby DC Motor 10000 Rpm Electric Motor DC Motor Flat

1.5V 3V RE-140 Small Hobby DC Motor 10000 Rpm Electric Motor DC Motor Flat

• Operating Range: 1.5V - 3.0V
• Nominal Voltage: 1.5V
• Current: 0.13A - 0.37A
• Power: 0.2W
• Speed: 4200 rpm - 8100 rpm
• Basic DC motor with lead wires operates with 1.5 to 3.0 volts and runs at speeds of 4200 5700 rpm.
• Dimensions are 40 mm L x 21 mm D. Weight 22g (0.8 oz).
• Cables New design: Wires are connected using terminals
• Shaft: 2mm x 10mm Exposed Shaft: 2mm x 8mm
• Motor Step Height:1.7mm
• Motor Body Length:25mm
• Motor Diameter:21mm
• Screw Holes Distance:10mm
• Srew Holes Size:2mm
• Shaft diameter: 2mm
• Shaft length: 8mm/10mm Or Custom as your need.
• Application: toy model making, remote control car, etc.

 RE-140/R140 Small Hobby DC Motor Dimension

RE-140 Small High Speed Electric Motor Parameter

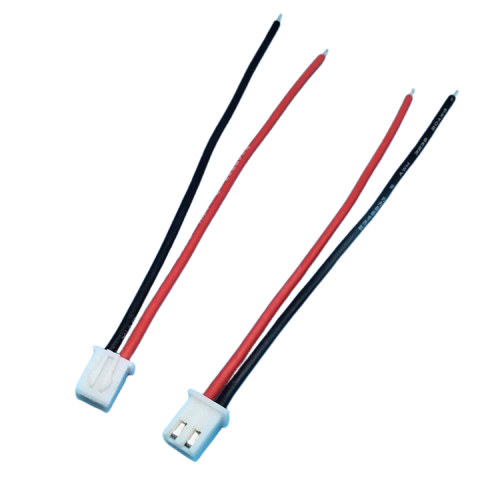

RE-140 DC Electric Motor Custom Motor With Wires

RE-140 Micro Motor: Detailed Custom Wire Bonding Service

The RE-140 micro motor is a high-performance, versatile micro motor distinguished by its support for custom wire bonding services, catering to customers' personalized needs for wire specifications, lengths, and connection methods. We are equipped with advanced wire bonding machinery and a skilled technical team, ensuring that every wire bond meets high-precision and high-reliability standards.

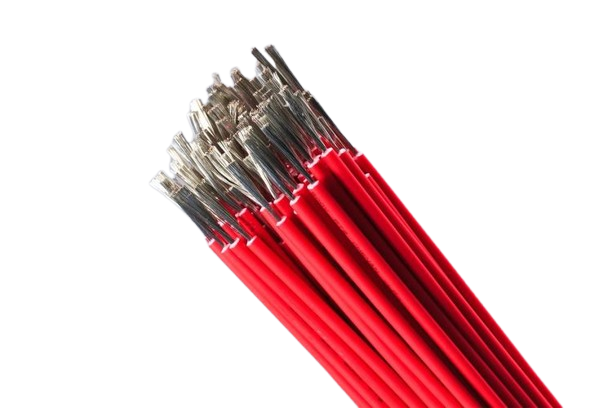

In our custom wire bonding service, customers can select different wire specifications based on specific application requirements, including wire material (such as copper wire, tinned wire, etc.), wire diameter, insulation material (such as PVC, silicone, etc.), and wire length. Whether for short-distance connections or long-distance wiring, we provide optimal solutions. Additionally, we offer various bonding treatments, such as tinning and sleeve protection, to enhance the durability and anti-interference capabilities of the wires.

Our professional wire bonding machines utilize automated production processes, ensuring efficient and stable bonding while significantly reducing human error. Each wire undergoes rigorous quality testing after bonding, including continuity tests, pull tests, and insulation performance tests, to ensure compliance with industrial standards. Whether used in precision instruments, medical devices, consumer electronics, or automation equipment, the RE-140 micro motor's custom wire bonding service delivers reliable support.

With extensive experience and strong production capabilities, we can quickly respond to customer needs, providing end-to-end services from prototypes to mass production. Whether for small-batch customization or large-scale orders, we guarantee high-quality delivery, helping customers optimize product performance. Choosing the RE-140 micro motor not only provides you with a high-performance motor but also access to professional and flexible custom wire bonding services.
