500 Gear Motor DC6V 12V 24V 30 Rpm High Torque Motor Electric Valve Automatic Tissue Machine

500 Gear Motor DC6V 12V 24V 30RPM High Torque Electric Valve Automatic Tissue Machine

The 500 Gear Motor is a high-torque, low-speed DC electric motor designed for precision applications. Operating at 6V, 12V, or 24V, it delivers a steady 30 RPM, making it ideal for automatic tissue machines, electric valves, and other equipment requiring reliable, low-speed performance. Its robust construction ensures durability, while the high torque output guarantees efficient operation even under heavy loads. Compact and versatile, the  500 Gear Motor is perfect for industrial automation, medical devices, and home appliances. Customizable options are available to meet specific needs, offering a cost-effective solution for demanding applications.

Technical Specifications

• Motor Type:JS500 gear motor
• Operating Voltage: 1.5V–24V DC
• Rated Volt:5V 6V 12V 24V
• Speed: 2200rpm(6V)   2600rpm(12V)  3600rpm(At 24V)
• Single Motor Diameter: 32mm
• Total Gear Motor Diameter:50mm
• Single Shaft Diameter: 2mm
• Gear Motor Shaft Diameter:5mm (D shaft)
• JS500 Gear Shaft Length: 20mm
• Torque: 19kgf.cm (adjustable up to 38kgf.cm)
• Weight: 100g
• Popular 500 Gear Motor Types:

  JS-500T 12V15R product parameters:

  Model: JS-500T

  Use voltage: 12V

  Speed: 15R

  Shaft: Horizontal hole tapping shaft



  JS-500T 24V30R product parameters:

  Model: JS-500T

  Use voltage: 24V

  Speed: 30R

  Shaft: Double flat tapping shaft



  JS-500T 5V5R product parameters:

  Model: JS-500T

  Use voltage: 5V

  Speed: 5R

  Shaft: single flat shaft



  JS-500T 6V10R product parameters:

  Model: JS-500T

  Use voltage: 6V

  Speed: 10R

  Shaft: Horizontal hole shaft

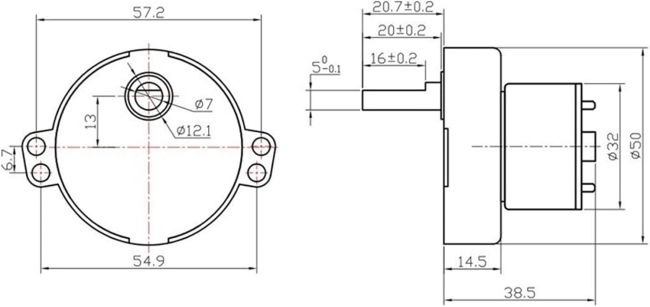

500 Gear Reduction Motor DC6V 12V 24V 30RPM High Torque Dimension

Notes:
1.Gear Motor Body Length:38.5mm (Without Shaft length)
2.Gear Motor Output Shaft Length:20±0.2mm
3.Gear Motor Output Shaft Diameter:5mm (D shaft)
4.Gear Motor Diameter:50mm
5.Step Height: about 1.8mm
6.Step diameter: about 12.1mm
7.Distance between two fixed aperture:57.2mm

8.Tolerances not otherwise specified decimal: 士0.3mm.
