13mm 6V 100RPM Miniature Gear Motor High Torque Gearbox For Express Cabinet Lock

13mm 6V 100RPM  Miniature Gear Motor High Torque Gearbox For Express Cabinet Lock

Our GA13Y030/GM13-030 series represents a premium 13mm DC spur gear motor with full metal gearbox, delivering 100RPM @6V with exceptional torque density. Engineered for precision motion control in space-constrained applications.

Key Specifications:
✔ Voltage: 6V DC (3-9V operational range)
✔ Speed: 100±10% RPM (After gearbox)
✔ Gear Type: Precision spur metal gears for smooth operation
✔ Shaft Options: D-cut or round (customizable)
✔ Current Draw: ≤20mA (no-load), ≤85mA (stall)

13mm Gear Motor Specifications

Model : GA13-030  micro metal gearmotor

Gearbox: 13 mm Dia metal spur gear reducer

030 Motor Size:12mm*15mm*18.6 (H*D*L)

Shaft : Φ3mm D-cut 0.5mm,custom

Gear Box Size:13mm*L mm (Length can be customized)
Shaft size : Approx. 4 x L mm (Dia.*L)
Nominal Voltage : DC 3V 6V

Operating Voltage:3V-9V
Revolving speed custom:
15RPM/18 RPM / 25 RPM / 35 RPM / 59 RPM / 70 RPM / 100RPM/120 RPM / 140 RPM / 250 RPM / 500 RPM

Commutation: Carbon brush/Graphite brush/Metal brush;
Construction: micro Permanent Magnet iron cored dc electric motor;

Technical Advantages

• 13mm Metal Gearbox: Hardened steel gears for 50,000+ cycles

• Gear-030 Motor Core: Carbon brushes rated for 300+ hours

• Customizable:

  • Encoder options (12-bit resolution)

  • Extended shaft lengths

  • 20:1 to 360:1 gear ratios

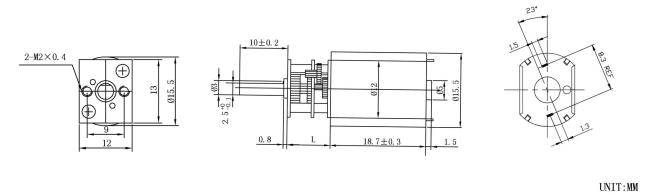

13mm 6V 100RPM  Miniature Gear Motor High Torque Gearbox For Express Cabinet Lock Dimensions

13mm Gear Redution Motor Outline Features:

• Single 030 Motor Size:12mm*15.5mm*18.7(H*Dia*L)
• Single 030 Motor Type:RF-030/RK-030
• Gearbox Diameter:13±0.2mm
• Gearbox Shaf Diamteter:3mm or 2.5mm D shaft (D-shaped output shaft is processed and milled to increase the force and friction, making the transmission more stable and convenient to connect and fix)
• Mounting Screw Holes Size:2*0.4mm
• Mounting Screw Holes Distance:9mm
• Gearbox Outshaft Shape/Length can be custom

Gear Ratio and Length of Gearbox

13mm 6V 100RPM  Miniature Gear Motor High Torque Gearbox Parameter List

The above list of parameters is a general parameter, if different needs can be processed according to requirements.

Voltage, Torque, Speed, Current, Power and Shaft size can be customized as requirement.

Designed for Smart Lock Systems

Ideal for:

• Express cabinet locks (high torque for bolt actuation)

• Fingerprint door locks (quiet, reliable performance)

• Bike/U-lock mechanisms (weather-resistant operation)

Why Engineers Choose This Motor?
→ Instant Torque: 2.5kg.cm stall torque for quick lock release
→ IP42 Protection: Resists dust/moisture in outdoor installations
→ Low Power Mode: ≤0.5W consumption for battery efficiency

Multi-Industry Applications

1. Home Automation

• Smart curtain drivers

• Appliance lid latches

2. Robotics

• UAV gimbal adjustments

• Robotic arm joints

3. Medical/Financial

• Projector focus mechanisms

• ATM card readers

4. Industrial

• Air switch actuators

• Sensor positioning systems
